High Quality Chain Trencher For Global

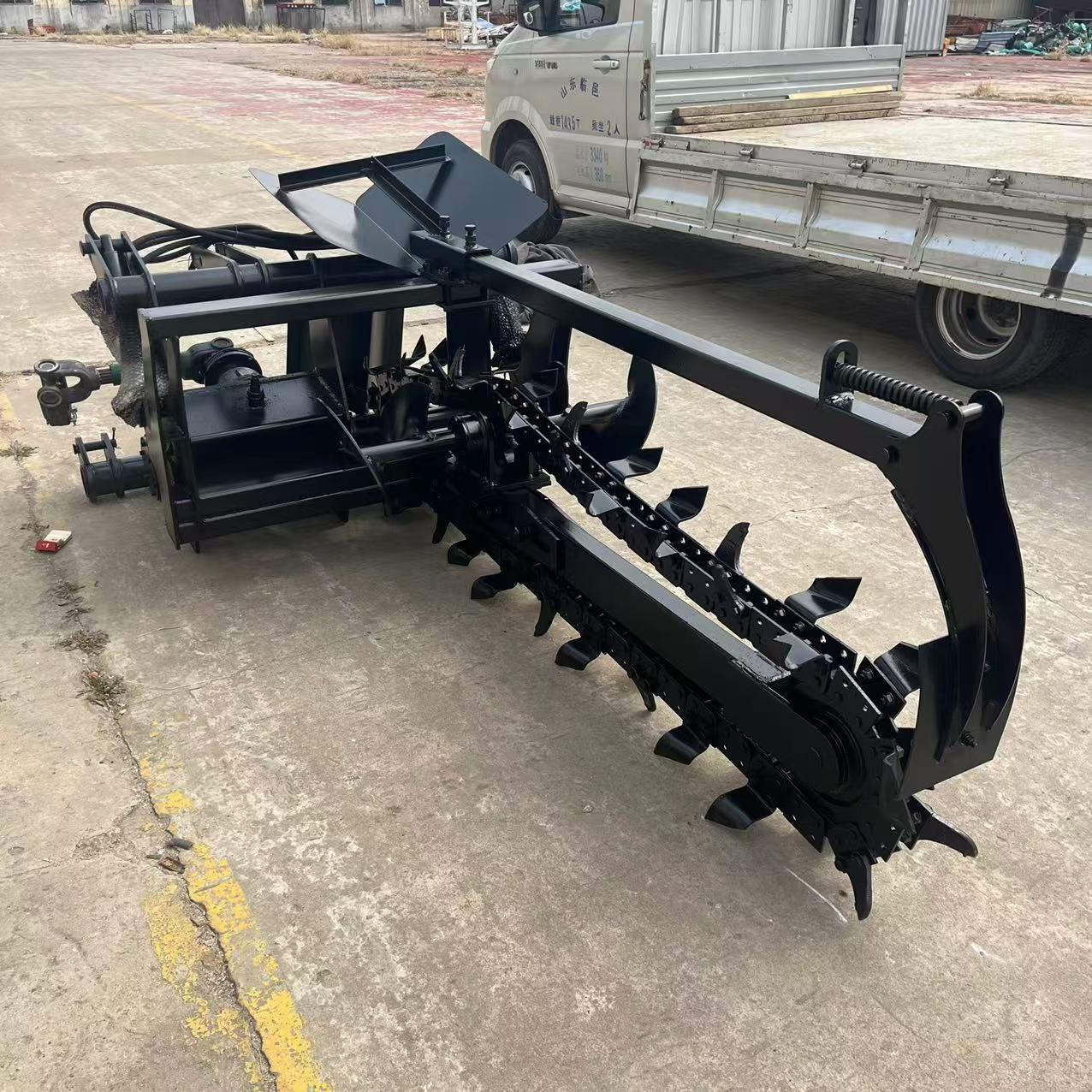

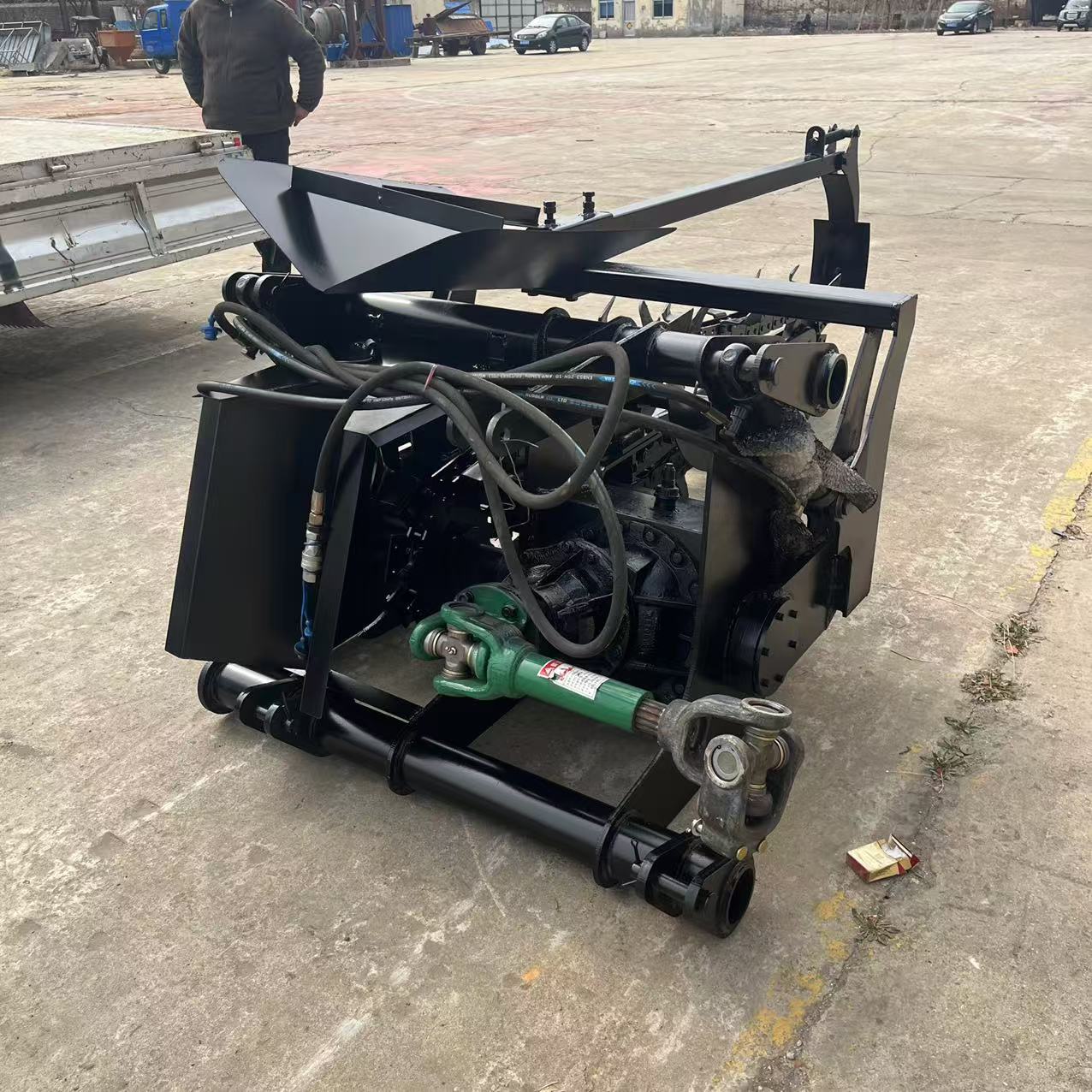

The rotation of the diesel engine in the power system is transmitted to the reduction box in the reduction system through the quadruple belt, which drives the main sprocket installed on it, and the main sprocket drives the chain meshing with it to rotate. The tool is installed on the chain, and under the drive of the power system, the chain drives the tool to rotate and translate, thereby realizing trenching. The chain trencher described in this solution can achieve the same depth, uniform width and adjustable size of the trench, greatly improving the quality and efficiency of excavation.

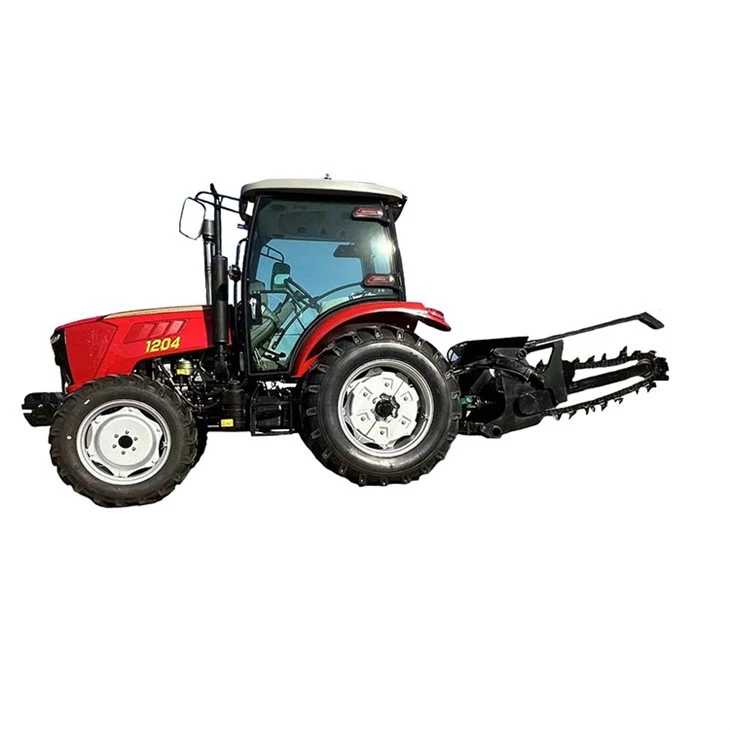

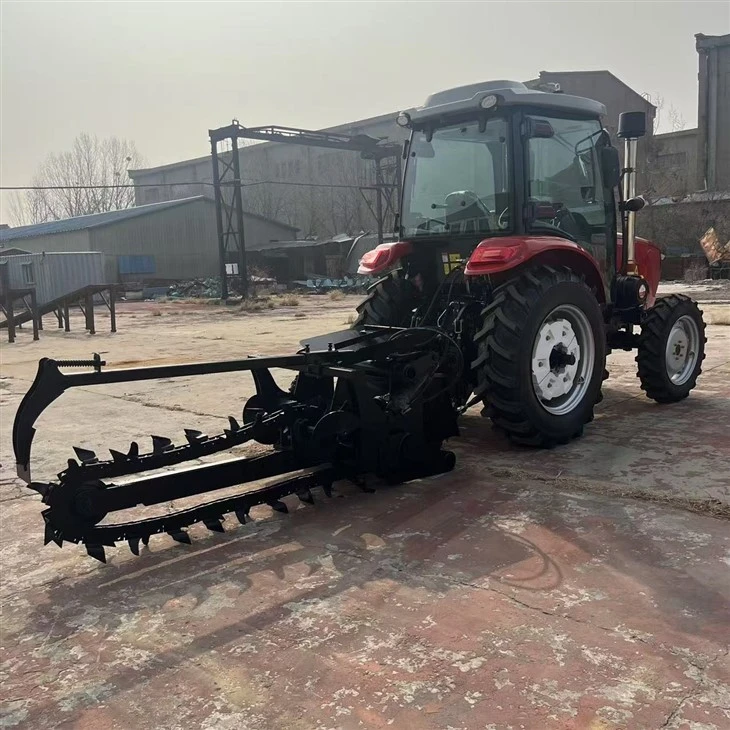

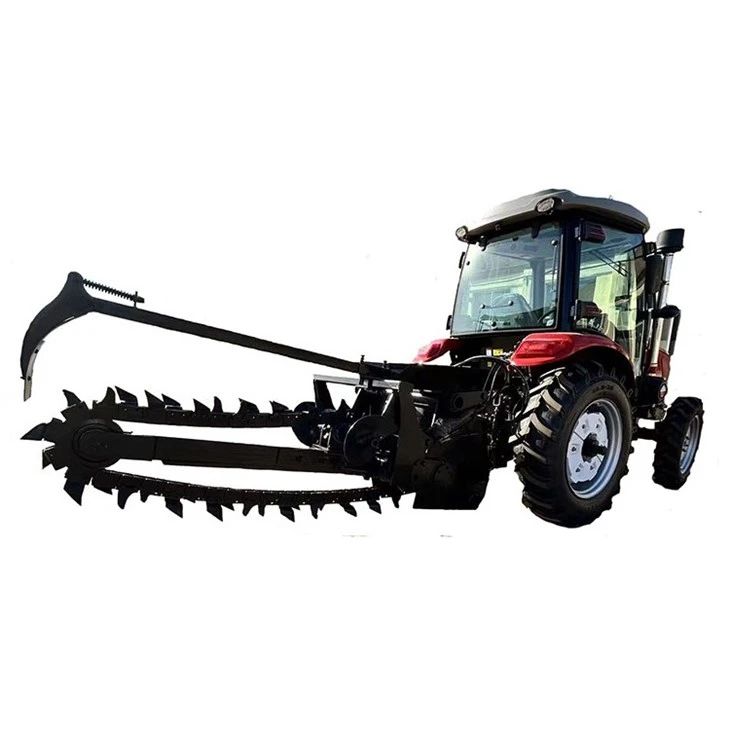

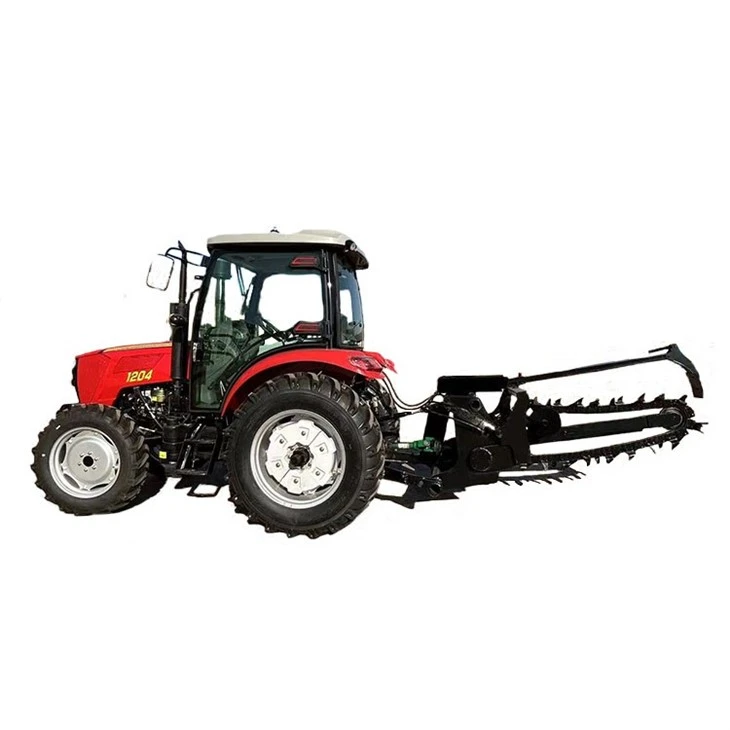

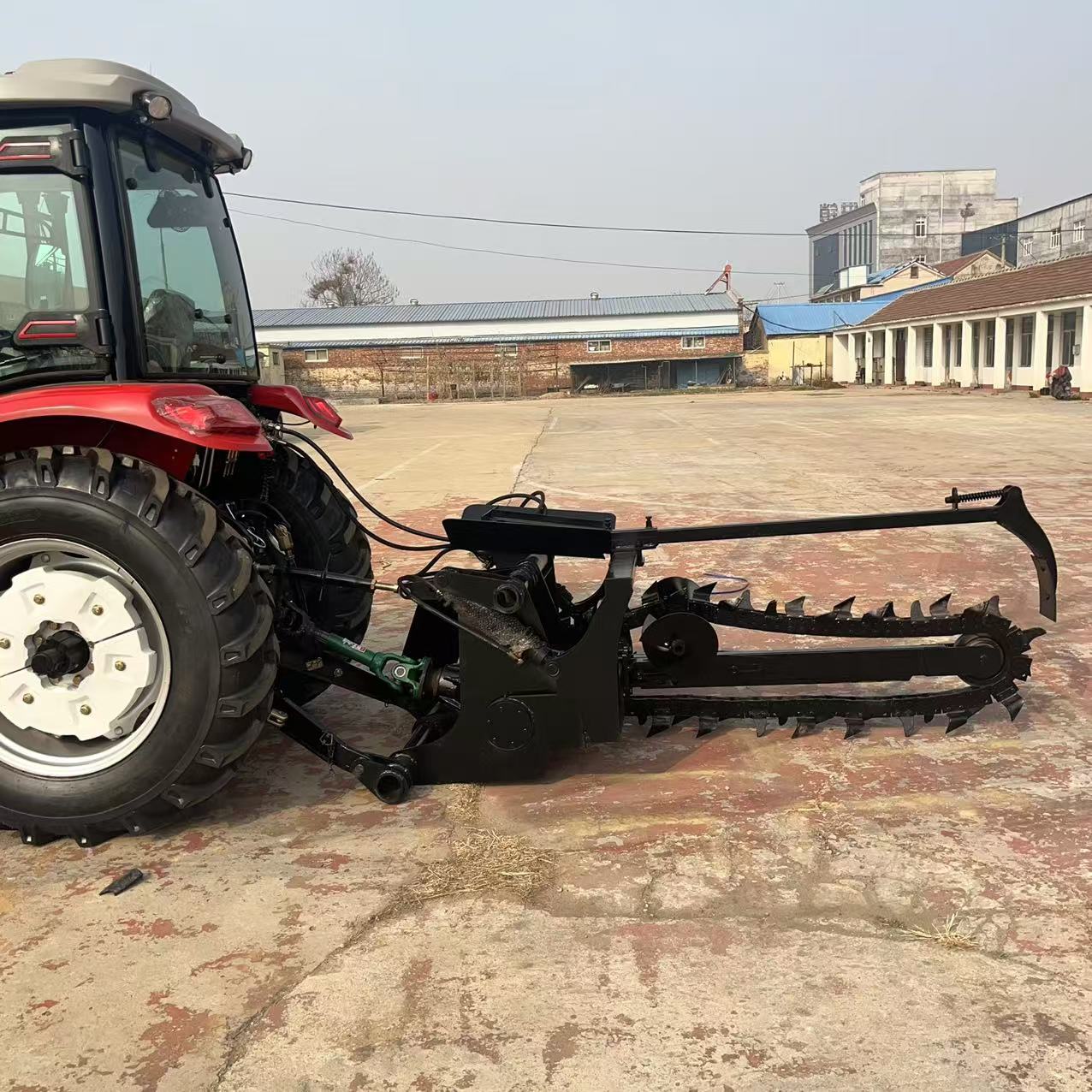

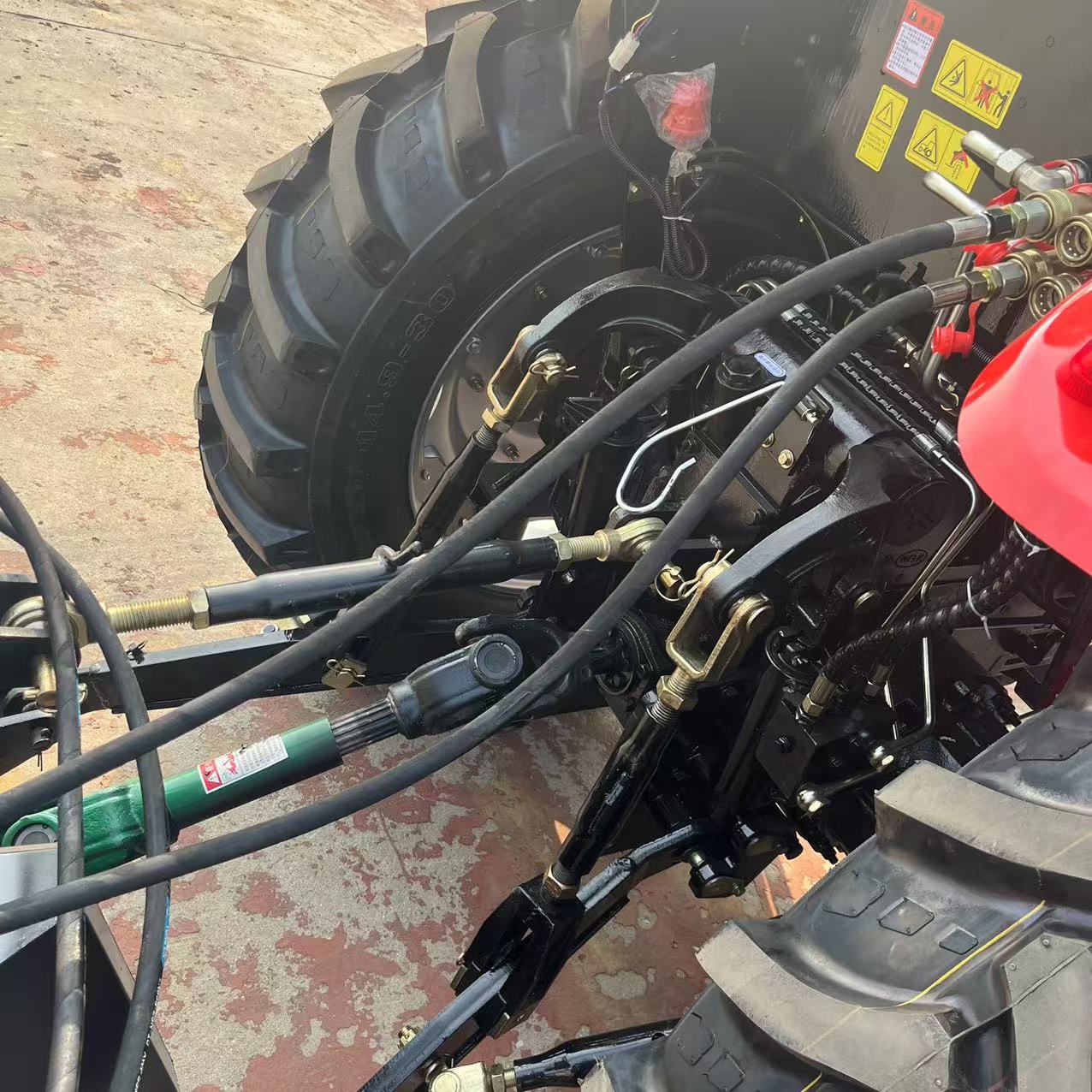

Developed and designed according to customer needs, this is a new type of trenching equipment specially used for 20-95 horsepower tractors. It is installed on ordinary tractors by installing an ultra-low speed transmission to achieve slow running, so that the trench depth is uniform up and down and the width is symmetrical left and right. The machine adopts a rotary trencher, the trench width is 10-40 cm, the trench depth is adjustable, the maximum trench depth is 160 cm, and the trench speed can reach 100-300 meters per hour. The trench is straight, the wall is steep, the trench depth and trench width are uniform, and this trench shape cannot be opened by manual labor or excavators. It is mainly suitable for trenching operations in underground pipelines, tap water pipelines and underground cable laying in farmland irrigation areas. Matching tractor power 25-95 horsepower Working speed 50-500m/h Cylinder pressure 16Mpa Trench width 15, 20, 25, 30, 35, 40cm Trench depth 0-160cm.

Significant economic benefits: Buying this machine requires low investment and quick results. One machine can replace the work of dozens of people, and you don't have to worry about workers' food, housing and other chores;
·The quality of trenching is good: the trench can be as narrow as 10-40 centimeters and as deep as more than 1.5 meters. The trench is straight and has steep walls. Such trenches cannot be dug by humans or excavators;
·Good quality and long service life: The cutting blades and chains are made of special materials and processes and have a long service life;
·High efficiency: Compared with manual labor and excavators, it has higher operating efficiency (3-5 times that of excavators, self-propelled ones are more efficient) and economic benefits, especially when digging narrow and deep trenches (buried pipes or Buried cable), the machine's operating effect is even more outstanding.
The whole machine has a simple structure, convenient operation and easy maintenance. If the matching tractor does not have an ultra-low speed gear (crawling gear), our company can modify it and install an ultra-low speed device.
