Products Description

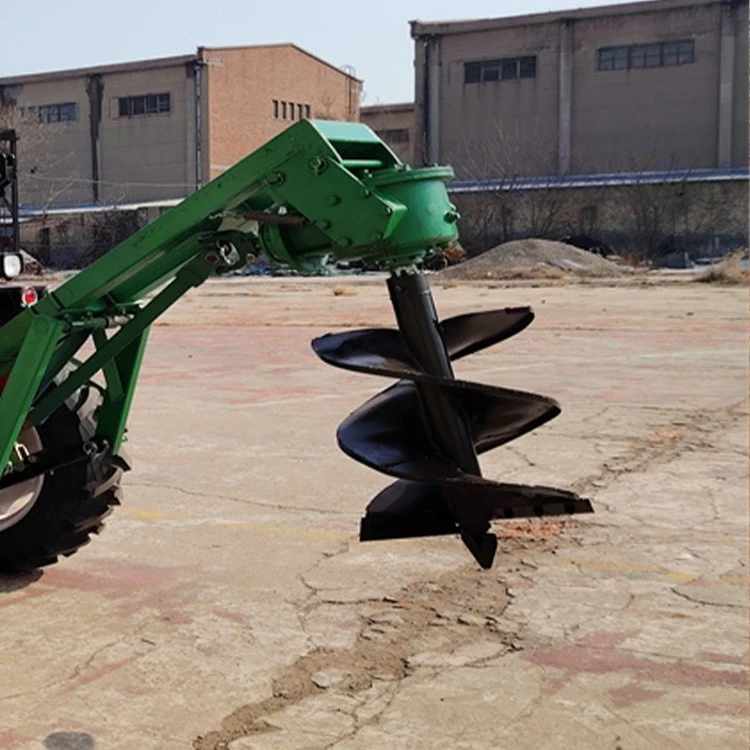

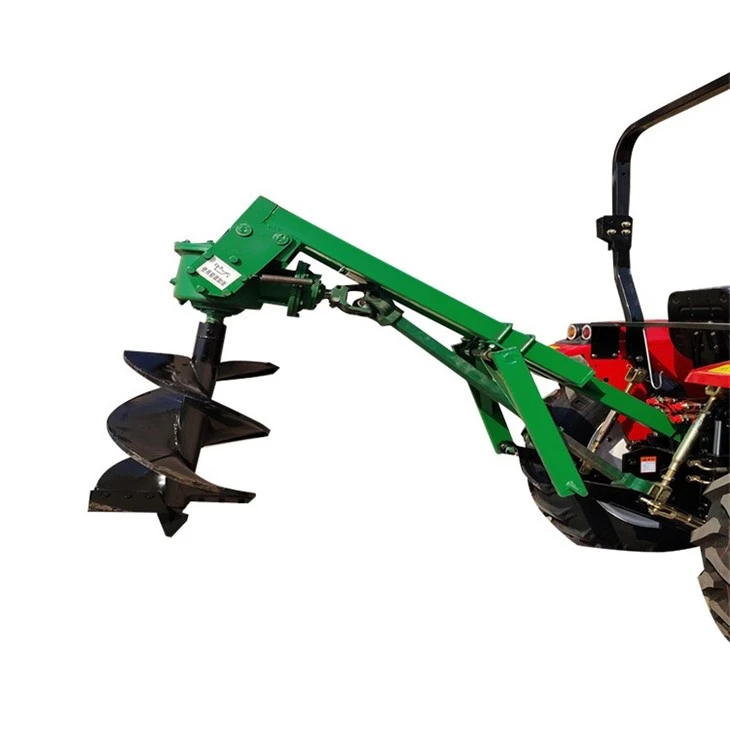

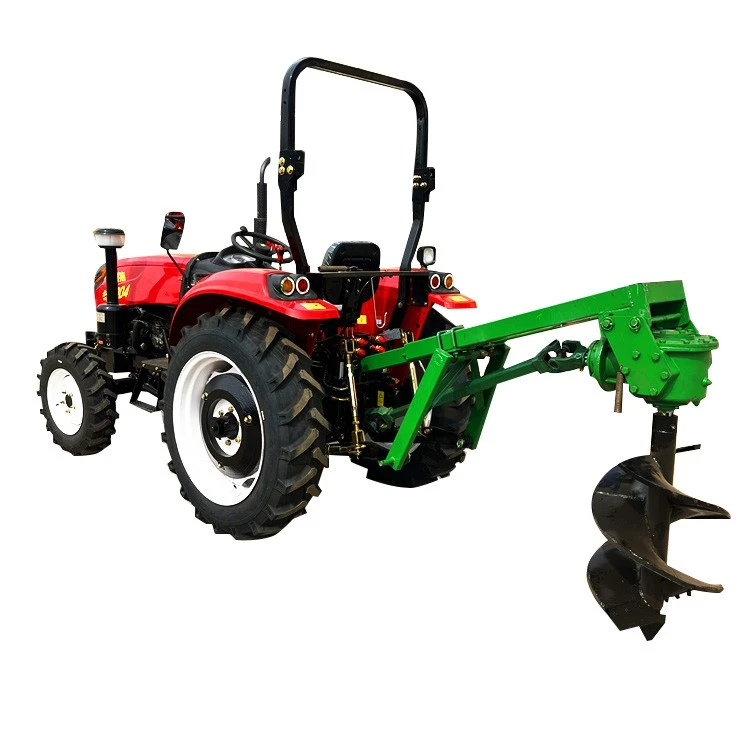

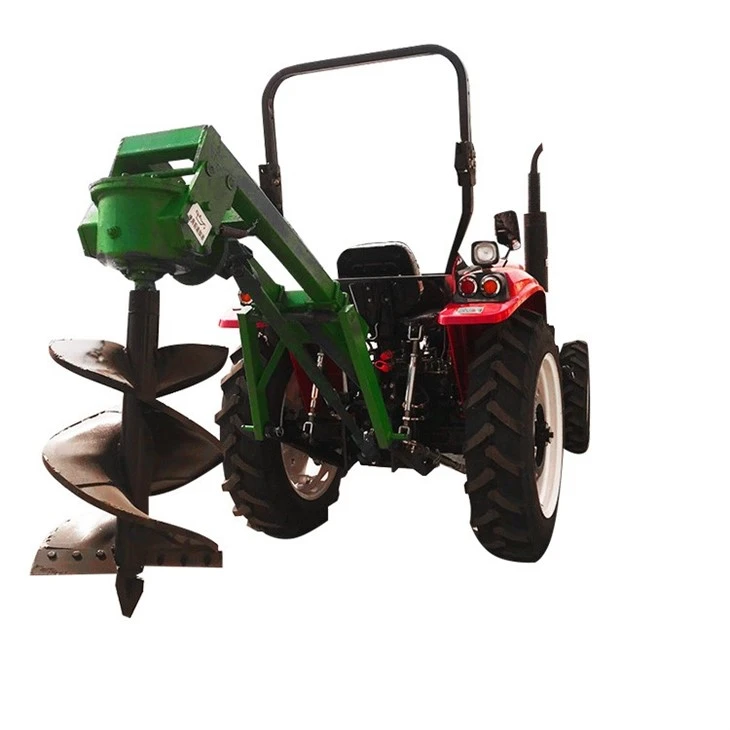

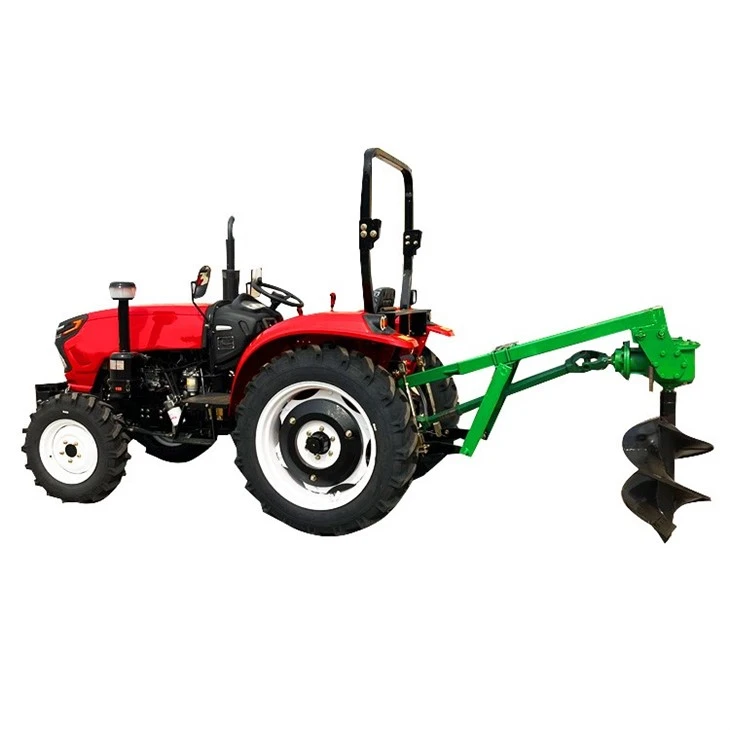

Tractor Tree Hole Digger

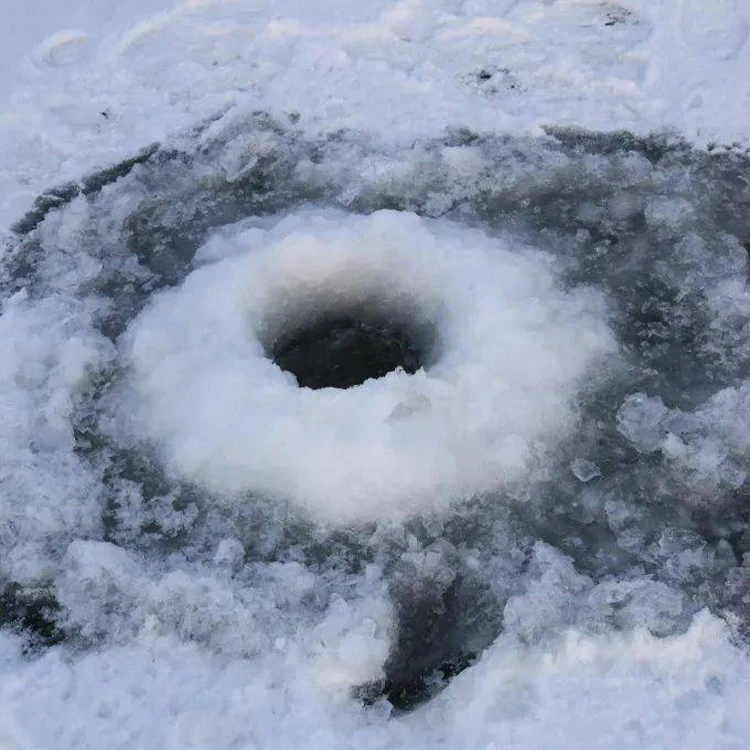

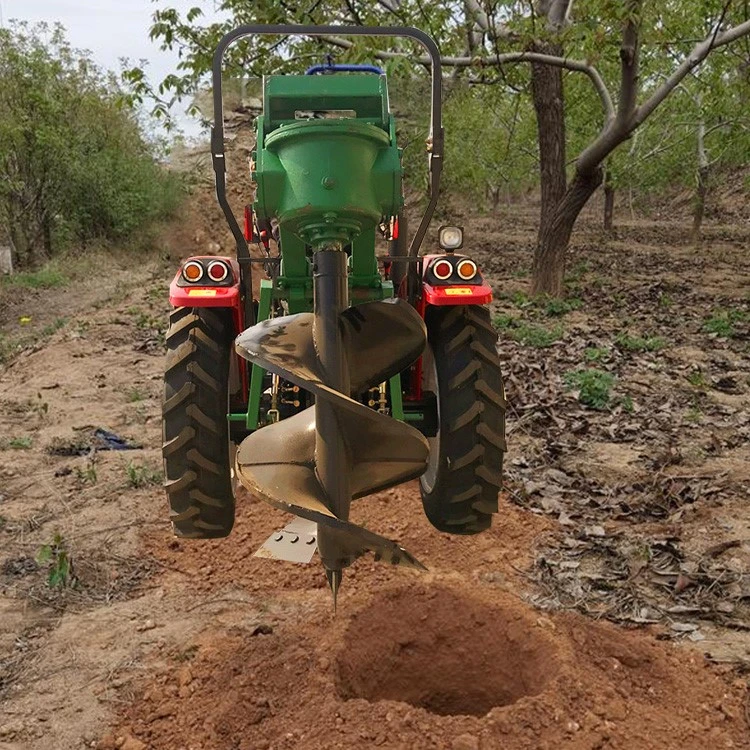

When the tractor tree pit digger digs a pit, the drill bit cuts off the soil in the center, and then the blade at the lower end of the drill blade cuts the soil. The cut soil is thrown to the hole wall under the action of centrifugal force and rises to the ground along the spiral blade under the action of friction and is thrown around the hole; after digging to the predetermined depth, the drill bit is lifted to the transportation state through the hydraulic suspension device to complete the digging process. Hydraulic lifting form: hydraulic lifting standard rod pit time: 47 seconds (diameter φ500mm×depth 3m) machine weight: 3.8 tons Applicable geological layers: loess layer, clay layer, soil layer containing pebbles and sand, weathered rock and soil layer, frozen soil layer. Unused geology: rock, construction backfill garbage, full sand layer, domestic garbage layer. The front-mounted digger hard soil layer, such as roadbed, foundation, ensure that the drilling speed is 2 minutes without large stones, and the frozen soil layer can be equipped with a frozen soil drill bit with a drilling speed of about 5 minutes. The excavator can dig a pit with a diameter of 50 and a depth of 3 meters, or a diameter of 100 and a depth of 2 meters. If there are pebbles in the construction soil, it will not affect the drilling, because the spiral blades can spin the pebbles out of the soil surface. If the soil content in the sand layer is greater than 25%, drilling can be done. If there are broken bricks in the soil, they can be drilled out completely, or they can be broken up by the sharp knife in front of the spiral blade. If it is a sand layer, the soil content is greater than 25%, it will not affect the drilling work. The ultra-high pressure hydraulic pump is connected to the tractor output shaft to provide power for the entire hydraulic system, including hydraulic cylinders, hydraulic motors, etc.
Advantages
1. High efficiency: The digger has strong power, and a pit with a diameter of 50 cm and a depth of 2 meters can be completed in about 1 minute. The efficiency is more than 100 times that of traditional manual digging methods and 5-7 times that of rear-mounted digging equipment;
2. Simple operation: The digger realizes the integration of driving and operation, and 1-2 operators can successfully complete the digging and drilling work of various pits;
3. High operation quality: The equipment adopts a front-mounted drill bit design, which is easier to find the drilling point than the rear-mounted type. It uses high-strength drill bits, anti-torsion and anti-tension spiral drill rods, and center positioning. The excavated soil pit is straight and solid, with less soil residue in the pit, and the maximum depth can reach 3.5 meters;
4. Strong adaptability: Since a tractor or excavator is used as the manufacturing platform for the equipment, this type of equipment has strong off-road performance and can adapt well to complex terrains such as hills and mountains. It can operate on most soil types such as loess, clay, gravel containing pebbles, weathered rock and soil, frozen soil, construction backfill garbage, full sand layer, and domestic garbage layer;
5. Wide range of applications: The equipment can be widely used in power and telecommunications projects, municipal projects, greening and tree planting projects, construction projects, solar photovoltaic power generation projects, etc.

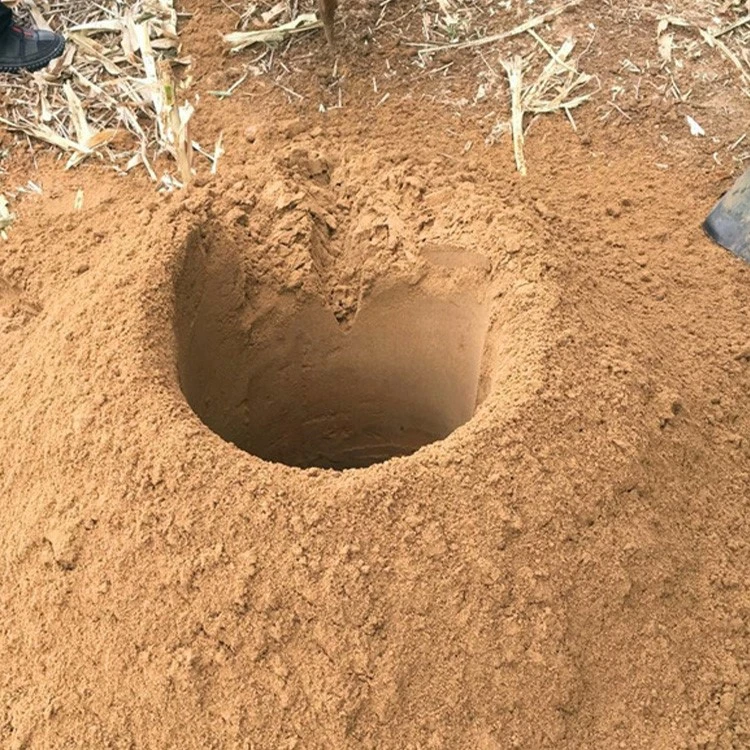

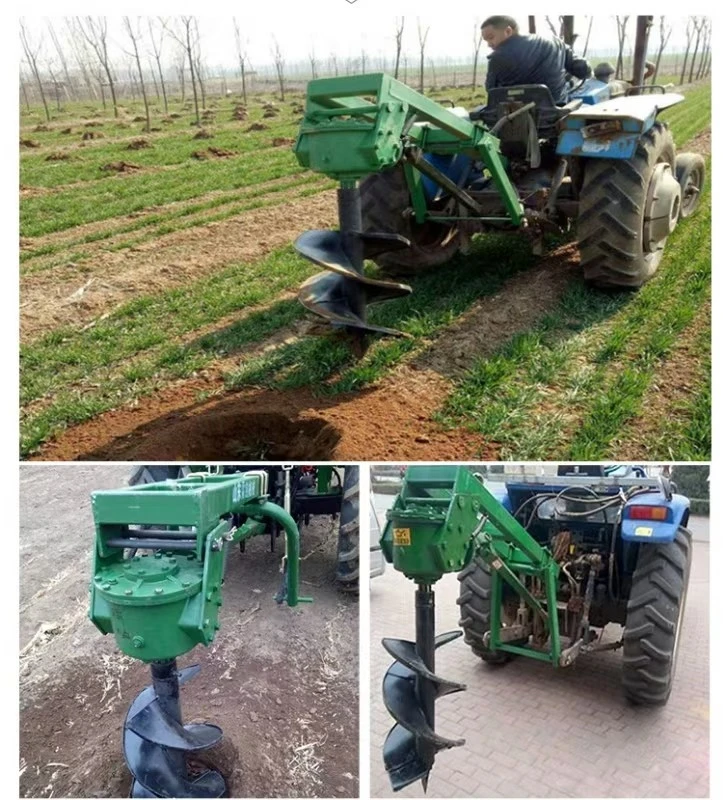

Suitable for various scenarios

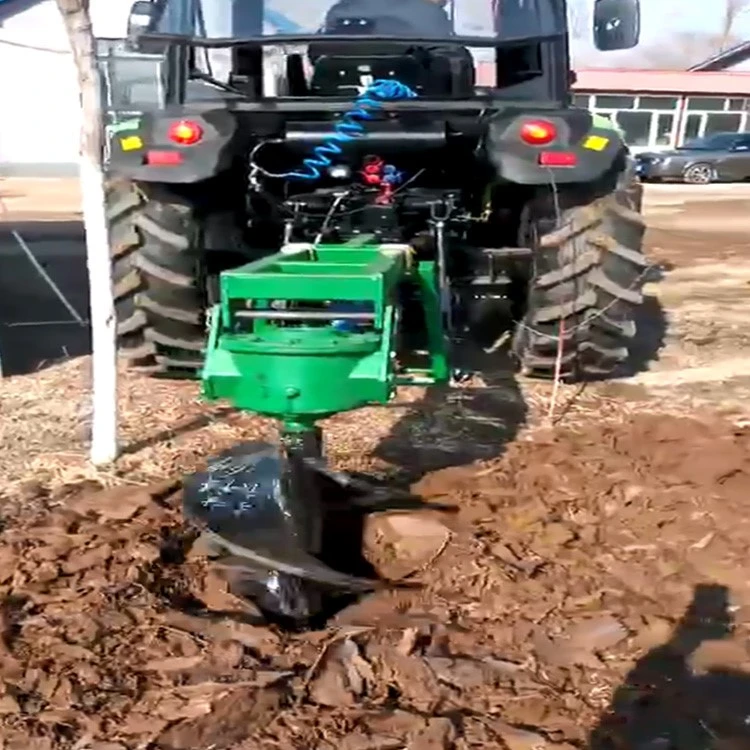

Correct use of the Tractor Tree Hole Digger
1. Install the pit digger on the tractor. Before use, check whether the tractor power output shaft is connected to the pit digger, and whether the transmission parts, working parts and reducer parts are working normally. It can be put into use only after they are working normally.
2. The driver should put the tractor's joystick in the "floating" state, and wait for the pit digger drill bit to align with the center of the pit mark to be dug, and then fall by its own weight, so that the drill bit rotates and enters the soil. It is strictly forbidden to enter the soil first and then engage the power.

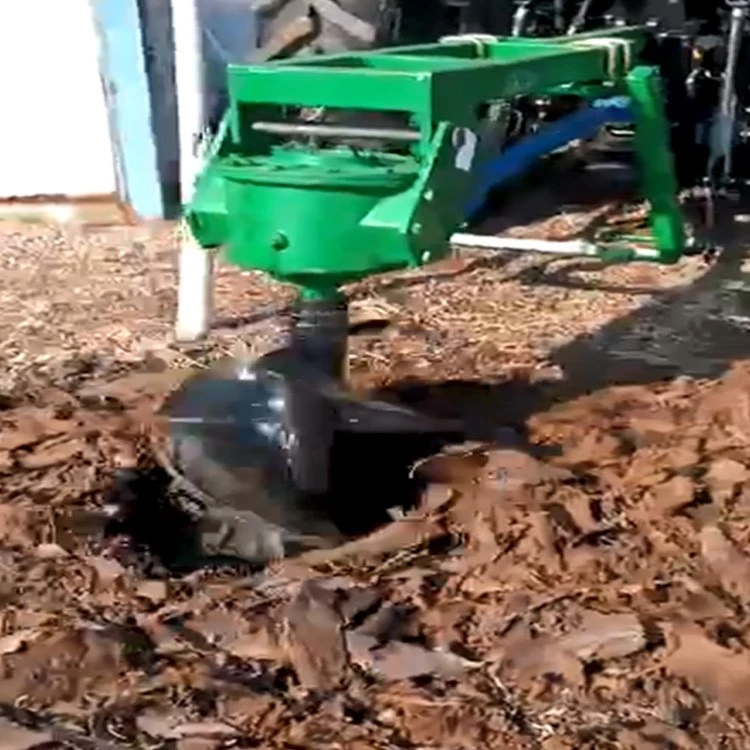

3. After the drill bit enters the soil, the soil cut by the spiral blade is thrown to the pit wall under the action of centrifugal force, and rises to the ground along the spiral blade under the action of friction, and is thrown around the pit. When the drill bit reaches the predetermined depth of soil entry, pull the hydraulic joystick to let the drill bit rotate and rise to the ground, and then dig another nearby tree pit.
4. During use, if the soil is relatively solid or the diameter of the pit to be dug is too large, it can be excavated in several times. First, use a small diameter drill bit to excavate, and then use a larger diameter drill bit to mill the small pit larger until the required pit diameter and depth are reached.

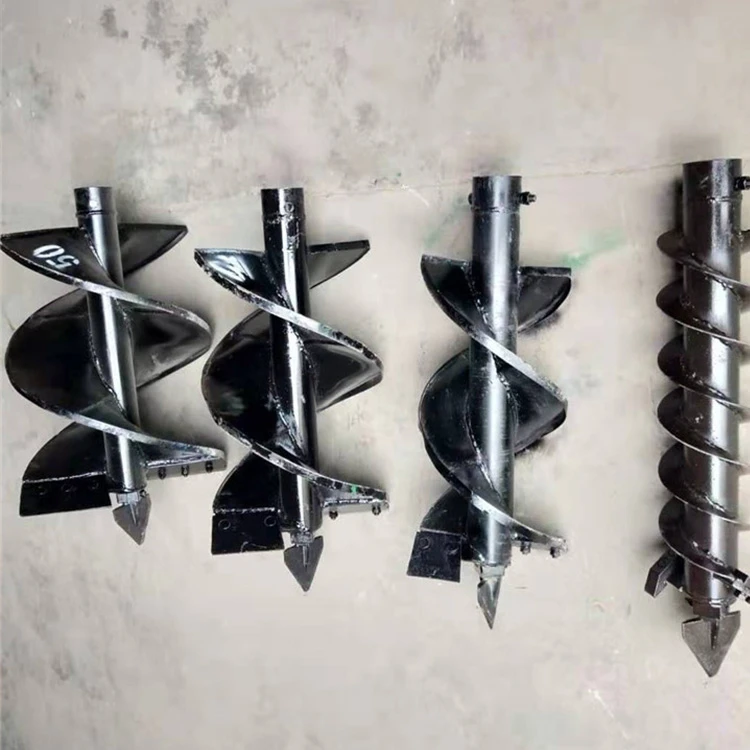

Product Details
Machine maintenance
1. Before operation, check the connection between the tractor and the digger. If the bolts are loose, tighten them; check the operation of the reducer. If there are any abnormalities, eliminate them; check the quality of the spiral blades of the drill. If there are any defects, repair or replace them.
2. During operation, if the drill speed suddenly drops and black smoke comes out of the tractor exhaust pipe, it may be that the drill encounters tree roots or rocks. The drill should be lifted immediately, and another pit site should be selected after troubleshooting.
3. After the operation, the soil on the tractor and digger should be cleared, and lubricating oil (grease) should be added to each lubrication point. Some waste oil can be applied to the spiral blades of the drill to prevent rust.
4. When the machine is not used for a long time after the season, the machine should be fully maintained and stored in a ventilated and dry place indoors for future use.

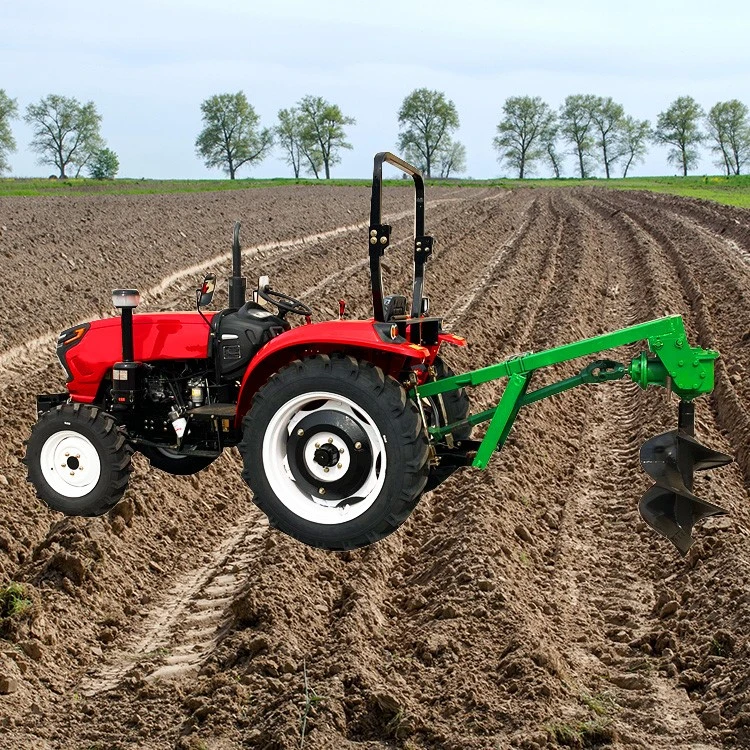

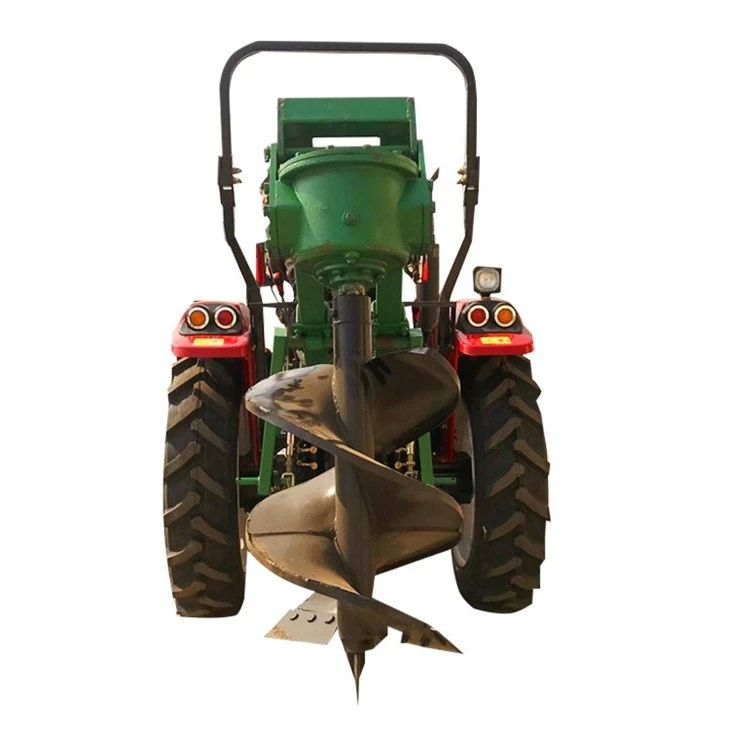

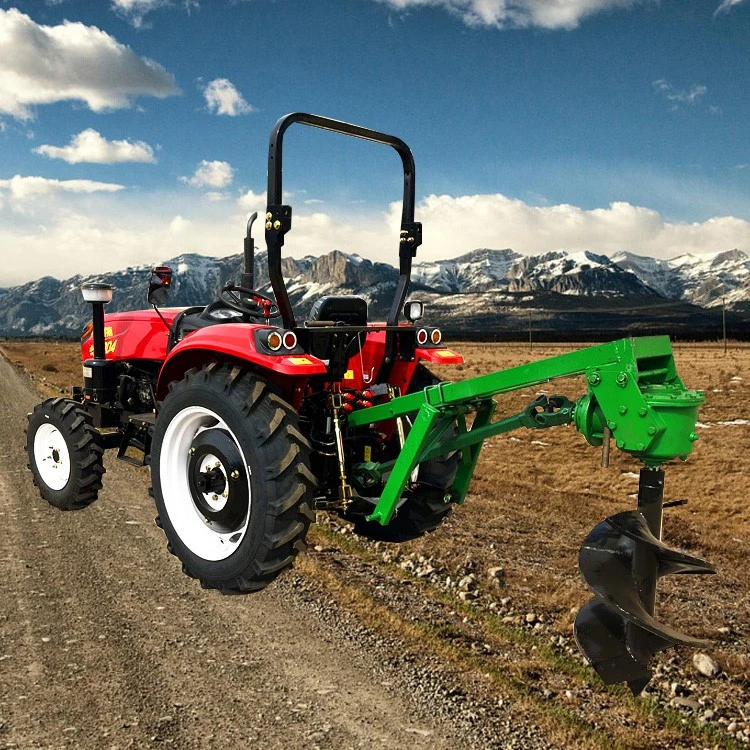

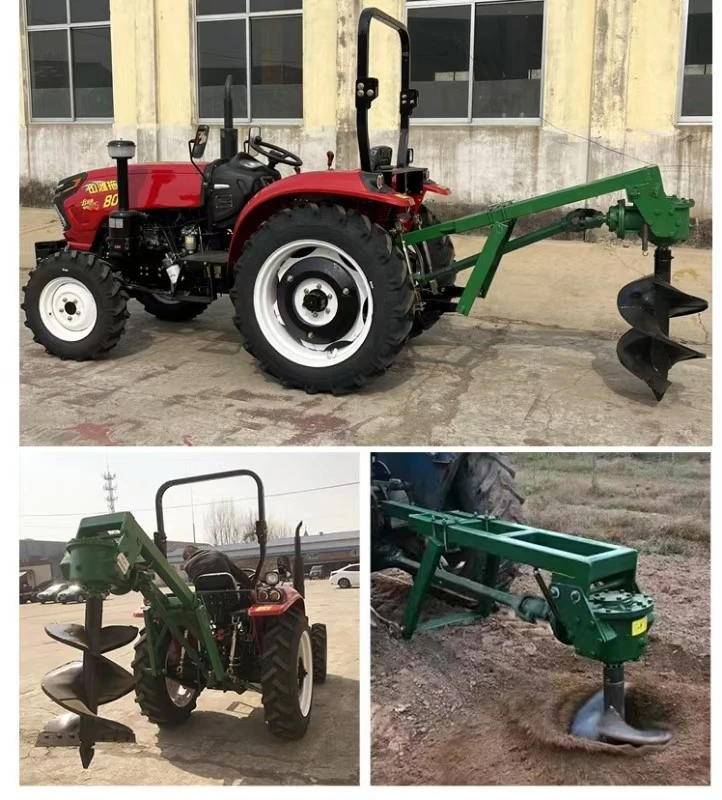

Product Display

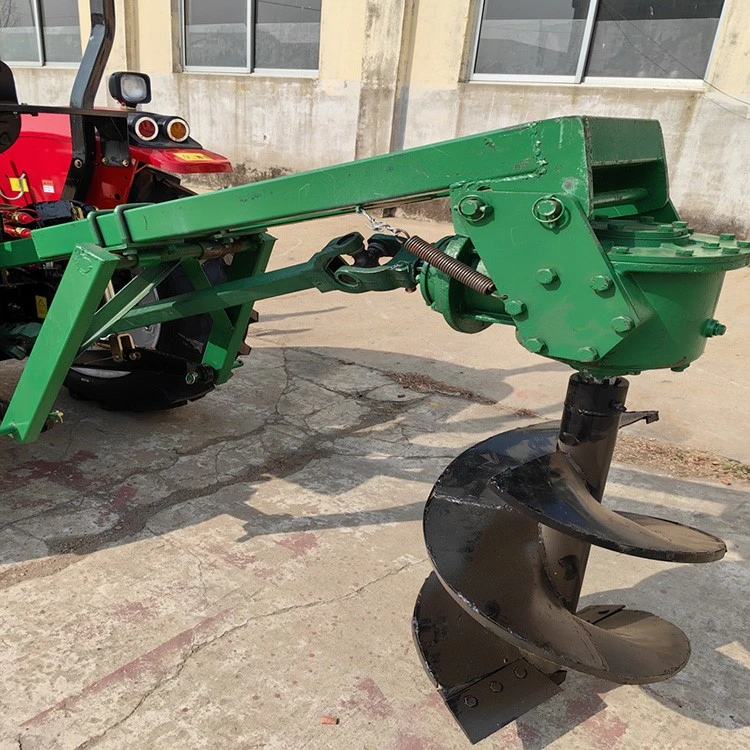

The power output interface on the tractor drives the drive shaft to rotate, and the gearbox steering drives the drill bit to rotate. The spiral drill bit drives the sand and soil upward to complete the digging operation.
The tree planting pit digging machine is mainly composed of a machine base on the tractor traction plate position, on which a drill rod, a drill frame, a passive wheel, and a lifting shaft are installed, and a V-belt pulley is fixed at the bottom end of the lifting shaft.
A cylindrical gear box is installed on the left side of the machine base, and an output shaft and a large bevel gear are installed in the box. The small bevel gear and the input shaft are meshed with the large bevel gear.
A triangular belt pulley is fixed on the outer end of the small umbrella gear and the input shaft, and a driving wheel is fixed on the middle part of the output shaft.
The driving wheel is connected to the driven wheel through a V-belt, the driven wheel is sleeved on the output shaft, and the driven wheel is connected to the V-belt pulley on the lifting shaft through a V-belt.
