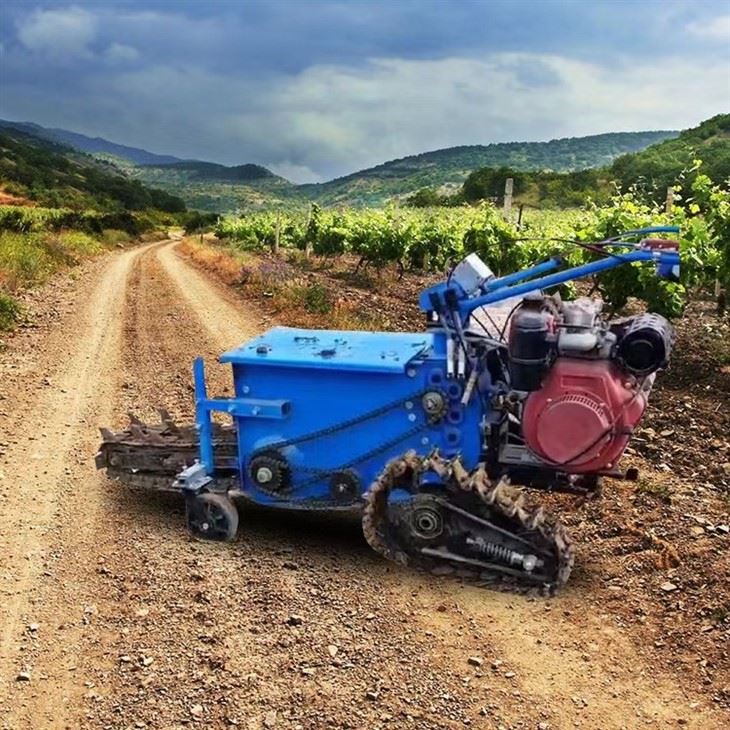

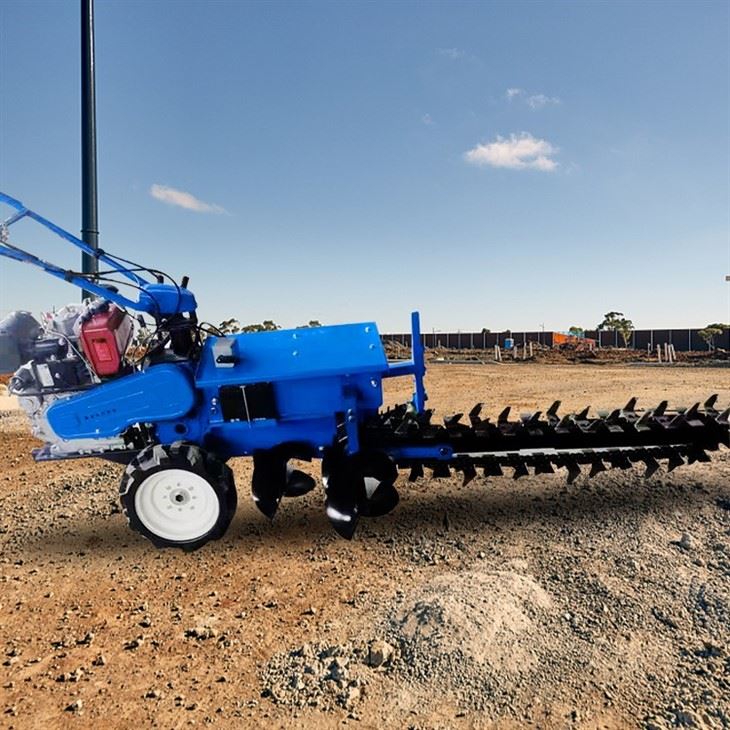

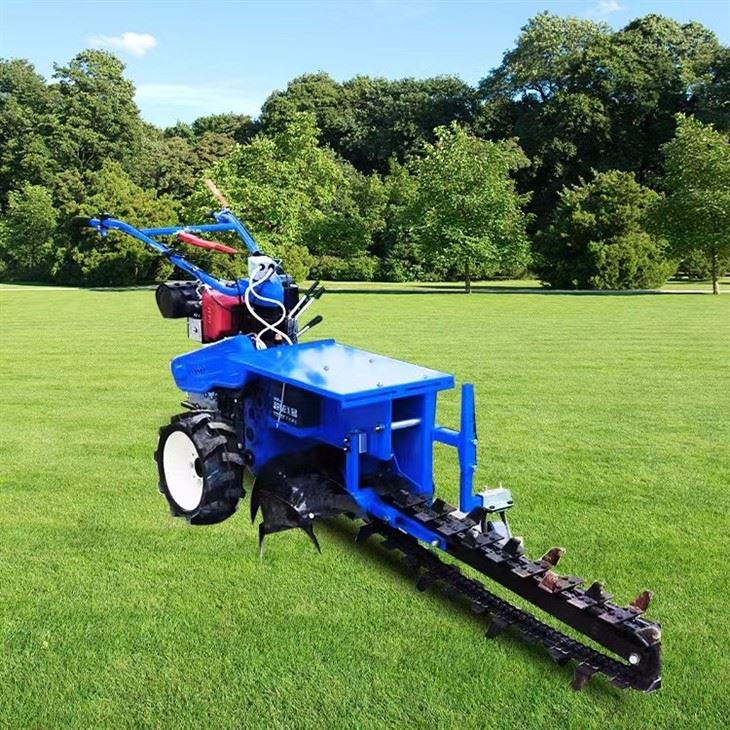

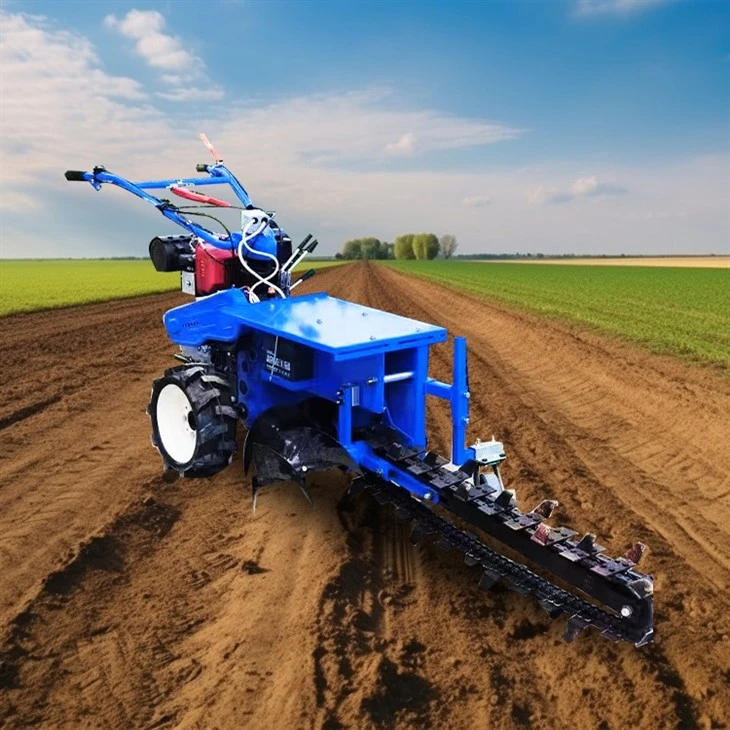

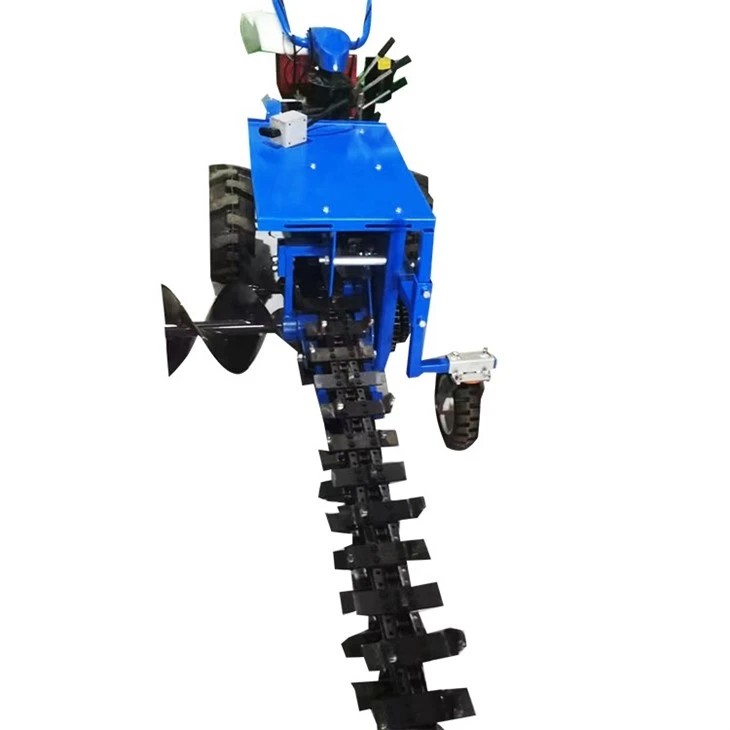

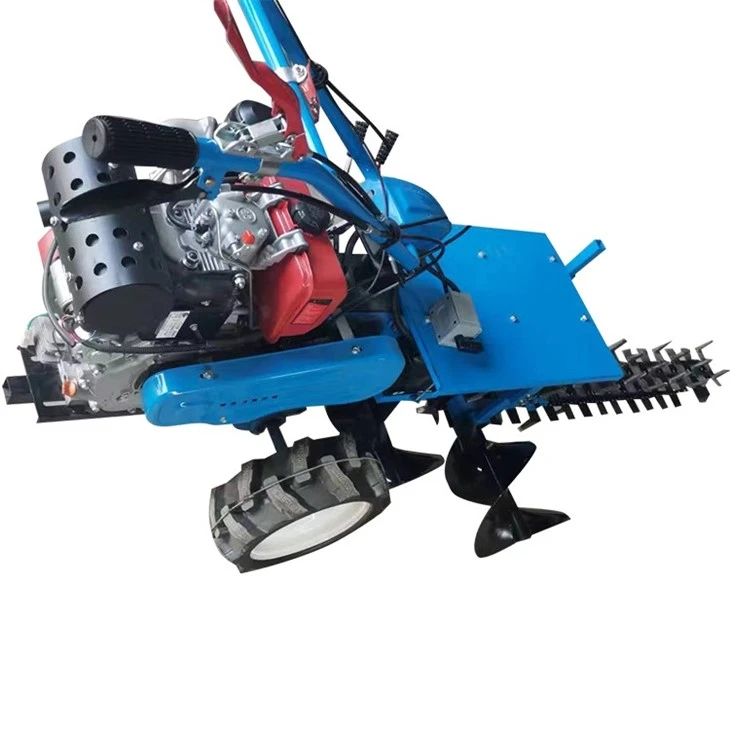

Small Walk-behind Chain Trencher

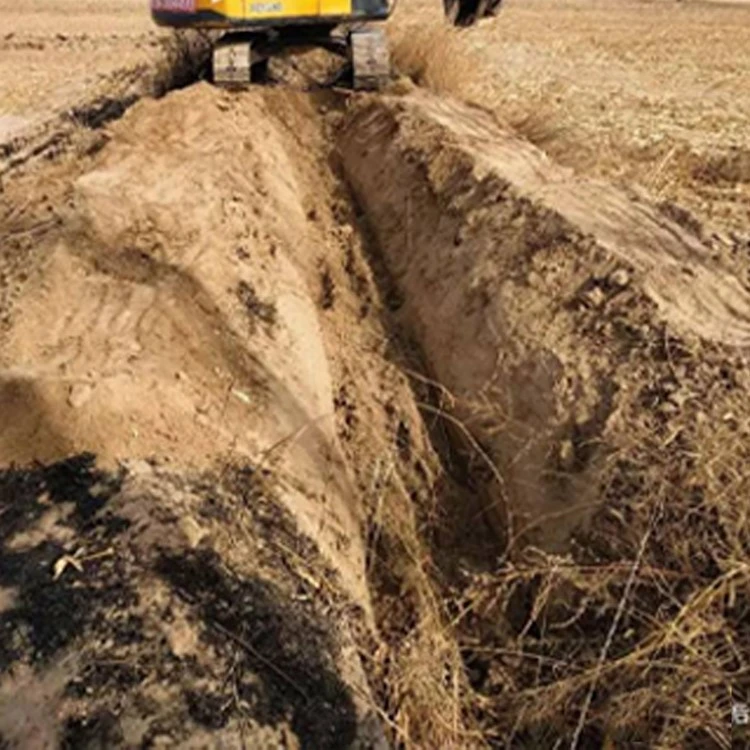

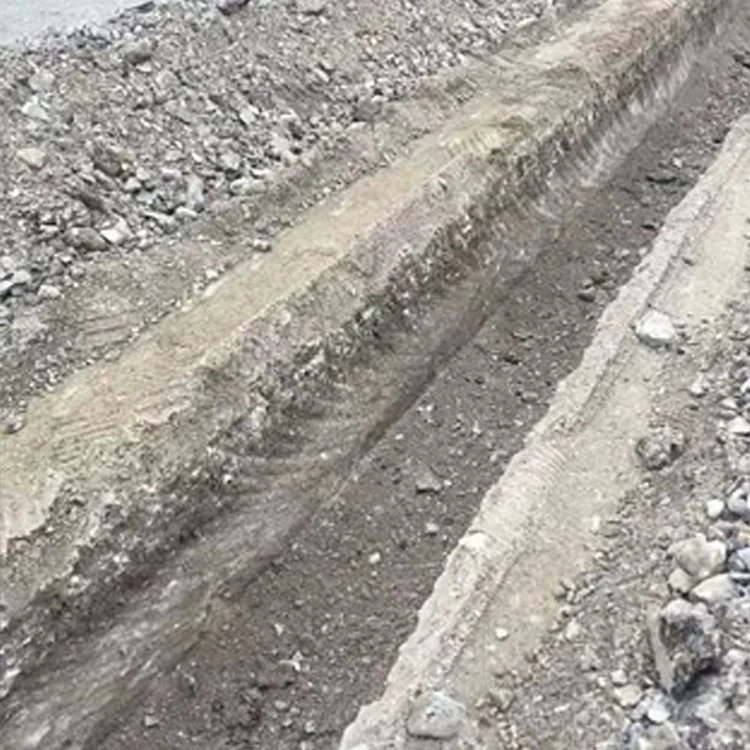

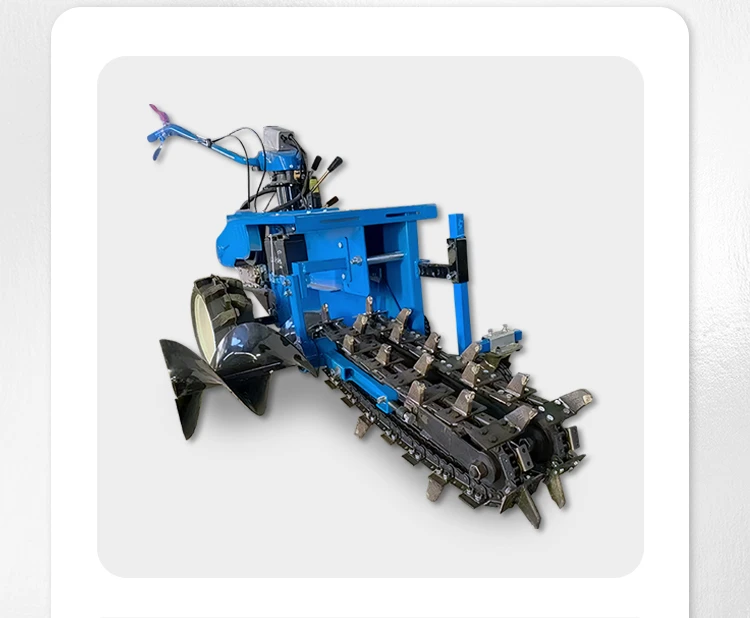

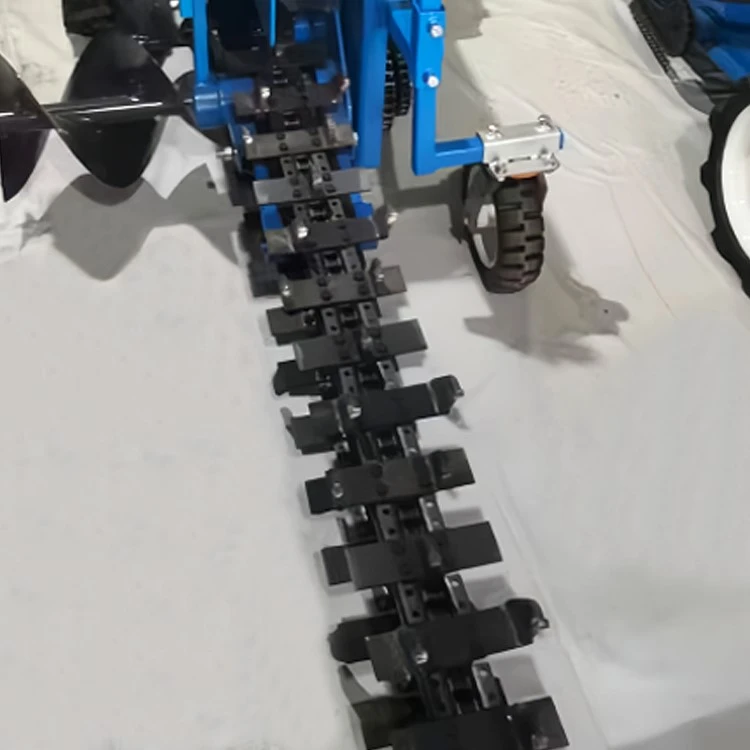

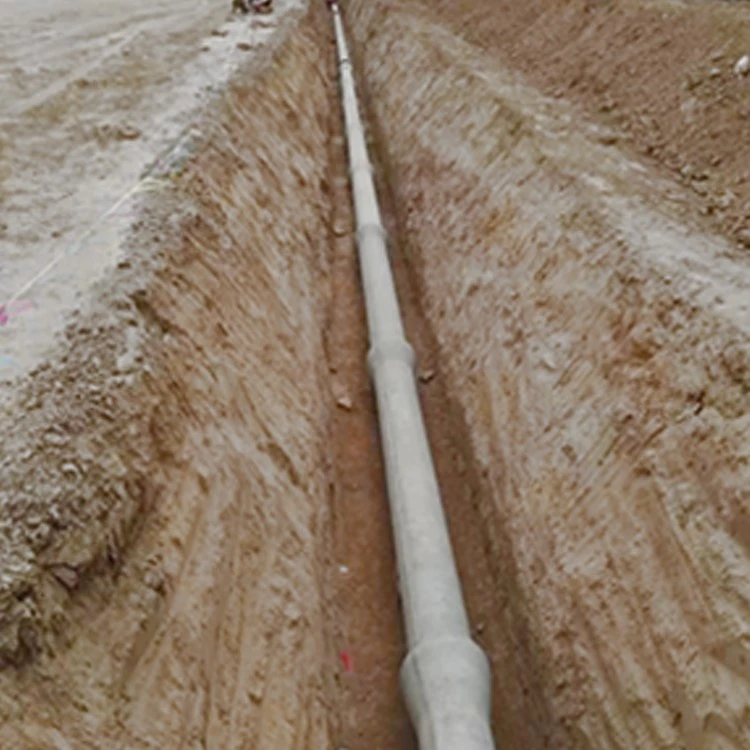

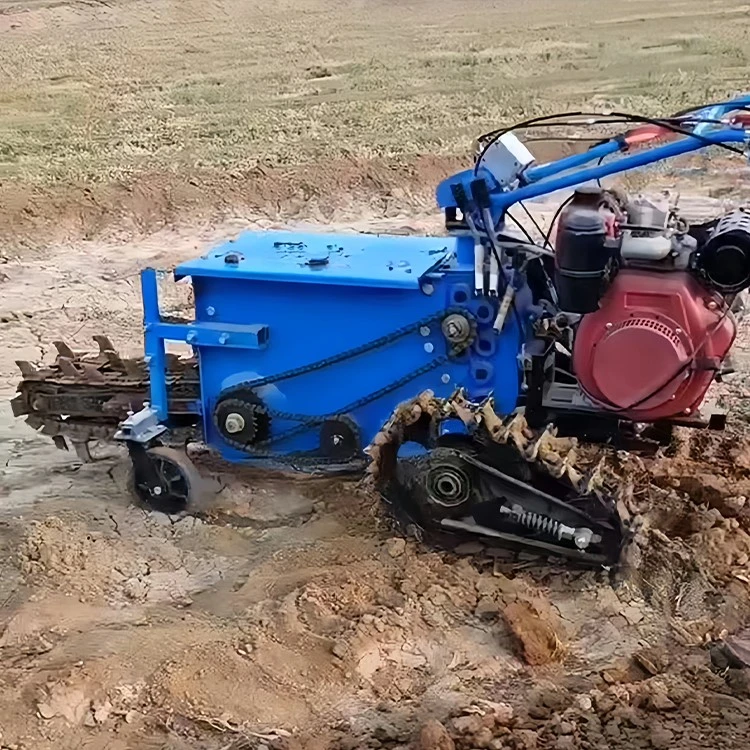

Small walk-behind chain trencher is a trenching equipment, specifically used for farmland irrigation, laying farmland pipelines, urban and rural optical cables, etc. The cutter is installed on the chain. Driven by the power system, the chain drives the cutter to rotate and move horizontally to achieve trenching. The trench dug has a consistent depth, uniform width, and adjustable size, which greatly improves the quality and efficiency of excavation.

With the development of the economy, the country has increased its efforts in infrastructure construction, and the number of underground pipeline and electric (optical) cable laying projects has increased dramatically, and the quality requirements have increased. Manual excavation is not only inefficient, but also has poor trench excavation quality and cannot meet the "minimally invasive" requirements. The existing mechanized trench excavation technology is basically divided into three types: one is excavation with a small excavator; the second is to install and drag a small chain on a large tractor; the third is a disc trencher. However, the three existing technical solutions all have shortcomings: using a small excavator to excavate large projects such as sewers, ditches, and canals has good efficiency and quality; but for pre-buried pipelines and electric (optical) cables, excavating narrow and deep trenches not only wastes resources, but also requires using a high-speed gun to kill flies; installing and dragging a small chain on a large tractor for trenching operations, due to the high output speed of the tractor, it does not match the low-speed and high-torque of the chain, which is easy to cause the chain to break and has low efficiency. The disc trencher transmits the rotation of the engine to a larger diameter disc equipped with a cutter, and realizes excavation through the rotation of the disc. The disc device structure is driven by a diesel engine, and after a series of belts, chains, sprockets, turbine reducers, etc., it is decelerated to achieve low speed and high torque, thereby driving the turntable to rotate and dig. The whole machine has high assembly cost, complex structure, frequent parts failure, low efficiency, and is only suitable for small projects such as roadside excavation.

The machine is highly efficient and has higher operating efficiency (3-5 times that of excavators, and self-propelled ones are more efficient) and economic benefits than manual excavators and excavators. Especially in the case of digging narrow and deep trenches (burying pipes or cables), the operating effect of the machine is more prominent. The whole machine has a simple structure, easy operation and maintenance, and is popular among customers.

The small walk-behind chain trencher has a small body and a low price. It is suitable for working in various complex terrains, has high work efficiency, is suitable for engineering construction, farmland trenching, and pipeline laying, and is a good helper for people.
