Products Description

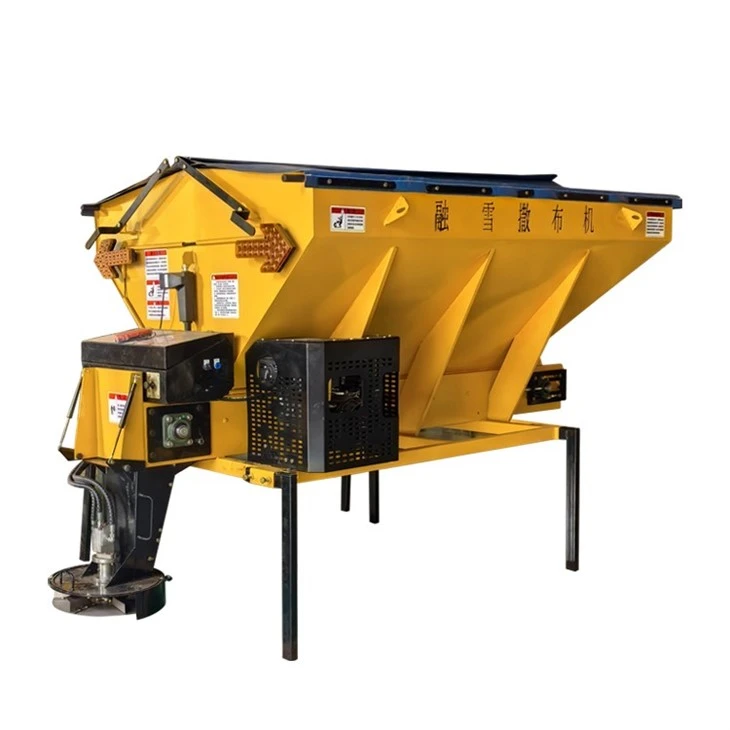

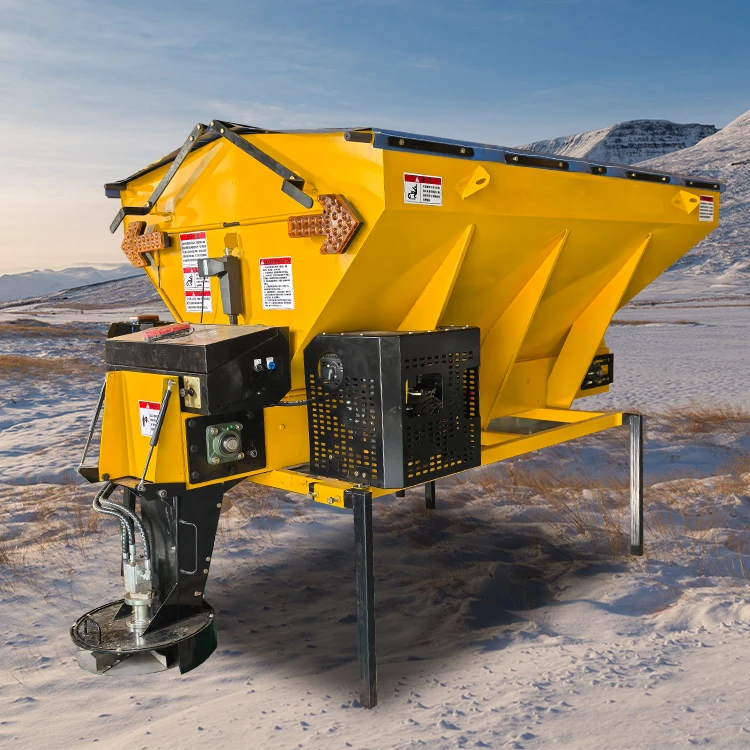

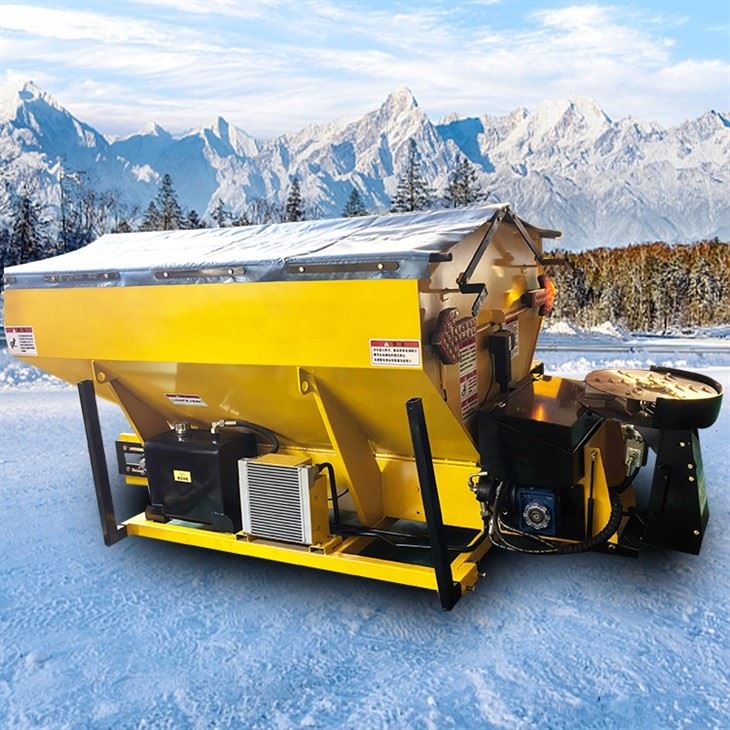

Winter snow melting material spreader
Winter snow melting material spreader is a kind of equipment specially used for spreading solid snow melting agent. It is mainly used for snow and ice accumulation on the road caused by heavy snowfall and severe cold in winter to ensure smooth road traffic. The equipment is mainly composed of silo, filter screen cover, chain scraper conveyor, centrifugal spreading device, internal combustion engine, hydraulic drive system and operation control system.
The working principle of the snow melting agent spreader is to convey the snow melting agent to the centrifugal spreading device through the conveyor belt, and then spread it evenly on the road surface. Its design allows solid inclusions to pass through the gate smoothly through the elastically deformed front element without causing overload and damage to the conveyor belt motor, thereby ensuring the reliability of work and uniformity of spreading.
Snow melting agent spreaders are widely used in highways, urban and rural roads, squares, airport terminals and other places to spread snow melting agents to melt snow. It is equipped with a gasoline engine, which is easy to start at low temperatures, and is equipped with an imported special hydraulic proportional control module, which has precise control, avoids waste, has high operating efficiency, is easy to operate, and has a low failure rate.
Products Features
There are many models to choose from-----with capacities ranging from 1 to 10 cBM
-
Features of The Winter snow melting material spreader
1. The whole machine is remotely operated, which saves worry and effort.
2. The power unit adopts an auxiliary engine to drive the hydraulic system, with a modular front-end centralized design, which is convenient for vehicle modification and compact in structure.
3. The spreading width can be adjusted from 2 to 15 meters, automatically adapting to changes in vehicle speed to ensure a constant spreading amount.
4. The conveying device adopts a steel scraper chain conveyor, which is anti-slip, has a stable conveying amount, and is maintenance-free.
5. Uniform loading: The spreader is equipped with a filtering coal net to reduce large particles or debris from entering the equipment, ensuring the safety of equipment, pedestrians and vehicles.
6. Waterproof and moisture-proof: The shed cloth above the hopper isolates rain and snow to prevent the snow-melting agent particles from getting wet and agglomerated. The shed cloth material is flexible and durable.
7. Simple operation: Remote control, cab switches, and integrated control panels make the equipment easy and safe to operate.
8. The purchased parts of the key parts of the machine are all imported high-quality components to ensure the reliability of the whole machine and increase the service life of the whole machine.
9. The machine can be installed on the chassis of various brands and models of cars.
10. This machine is suitable for snow removal operations on high-grade highways, roads, urban roads, airports, squares, and scenic area roads.
Products Specification
paramenters of snow melting material spreader
Our product models are diverse, the following are the basic parameters of the product
| Model number | 1m³ |
2m³ |
3m³ |
4m³ |
| Power | gasoline | gasoline | gasoline | gasoline |
| Spreading amount |
20-150g/m² |
20-150g/m² |
20-150g/m² |
20-150g/m² |
| Transmission mode | Chain conveyor | Chain conveyor | Chain conveyor | Chain conveyor |
| Box size |
2100*1120*1280mm |
2700*1600*1400mm |
3700*1705*1430mm |
3980*1750*1570mm |
| Capacity |
1m³ |
2m³ | 3m³ |
4m³ |
| Spreading width |
2-15m adjustable |
2-15m adjustable | 2-15m adjustable | 2-15m adjustable |
| Spreading speed |
15-40KM/H |
15-40KM/H |
15-40KM/H |
15-40KM/H |
| Spreading disc diameter |
500mm |
500mm |
500mm |
500mm |
Working Principle
snow melting material spreader
The working principle of the de-icing agent spreader is mainly achieved through the coordinated work of the spreader and the conveyor belt.
1. Spreader

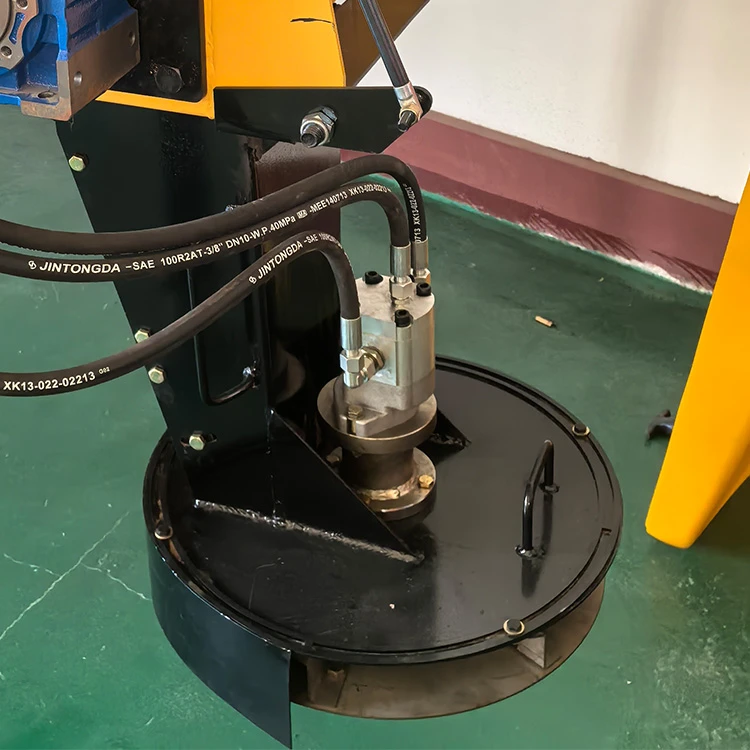

The spreader is the core component of the de-icing agent spreader, which is responsible for spreading the de-icing agent evenly on the road. The spreader usually consists of a rotating spreading disc and a spray hole. When the spreader rotates, the de-icing agent will spray out from the spray hole to form a thin layer of de-icing agent covering the road surface.
2. Conveyor belt
The conveyor belt is a device that transports the de-icing agent from the storage bin to the spreader. The conveyor belt is usually made of rubber or plastic. It can continuously transport the de-icing agent from the storage bin to the spreader through the drive of an electric motor or a hydraulic system to ensure that the spreader always has enough de-icing agent to use.
3. Control system
The de-icing agent spreader is usually also equipped with a control system to control the rotation speed, spreading amount and switching of the spreading mode of the spreader. Through the control system, the operator can adjust the de-icing agent spreader according to the actual situation to achieve the best snow removal effect.
