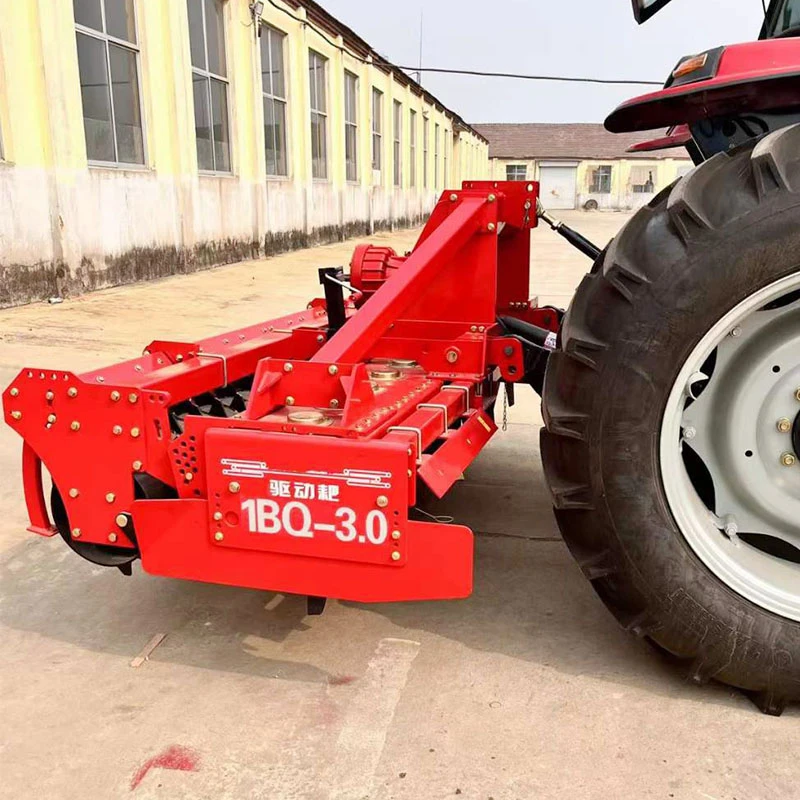

1. Overview of power harrow
Power harrow is a soil tillage machine driven by the tractor power output shaft (PTO), mainly used for fine land preparation before sowing. Unlike traditional passive harrows, power harrows actively break up soil clods through rotating harrow teeth, which can achieve more uniform and finer soil treatment effects.
2. Main structural components of the drive harrow
Transmission system:
PTO power input shaft;
Gearbox (usually a right-angle gearbox);
Drive chain or gear set;
Safety clutch;
Working parts:
Rotating harrow shaft (usually 2-4 sets);
Replaceable harrow teeth (different forms such as L-type and C-type);
Depth adjustment device;
Auxiliary devices:
Pressing roller (adjustable pressure);
Scraper board;
Protective cover;
Hydraulic or mechanical lifting system;
3. Working principle of the drive harrow
When the drive harrow is working, the tractor PTO power drives the harrow shaft to rotate at high speed (usually 150-300rpm) through the transmission system, and the harrow teeth cut into the soil in a tangential direction, breaking the soil blocks and throwing them backwards. At the same time, the pressing roller compacts the treated soil to form an ideal seed bed structure.
4. Technical advantages of drive harrow
Excellent operation quality:
Soil crushing degree can reach more than 85%;
The treated soil particle size is uniform (mostly 1-5cm);
The soil layers are evenly mixed;
High operation efficiency:
Soil loosening, soil crushing, leveling and compaction can be completed in one operation;
The working speed can reach 8-12km/h;
Suitable for various soil conditions;
Energy saving and environmental protection:
Save 20-30% fuel compared with traditional farming methods;
Reduce soil compaction; Maintain soil structure;
5. Technical parameters of drive harrow
Working width: 1.5-6 meters
Required power: 15-30 horsepower/meter
Harrow tooth speed: 150-300rpm
Operation depth: 8-20cm
Weight: 50-150kg/m
VI. Selection and application of drive harrow
Selection considerations:
Tractor power matching;
Soil type and conditions;
Operation depth requirements;
Requirements for supporting agricultural implements (such as seed drills);
Typical application scenarios:
No-till or minimum-tillage system;
Straw return to field processing;
Green manure turning;
Preparation before fine sowing;
VII. Operation and maintenance points of drive harrow
Operation precautions:
Check all fasteners before starting;
Maintain a uniform and straight driving speed during operation;
Avoid idling on hard ground;
The harrow must be lifted when turning;
Daily maintenance:
Regularly lubricate each transmission component;
Check the wear of the harrow teeth Condition;
Clean up the entangled straw and debris;
Prepare for rust prevention before long-term storage;
VIII. Development trend of drive harrow technology
Intelligent development:
Automatic depth control system;
Operation quality monitoring sensor;
Integration with self-driving tractors;
Multifunctional:
Integrated design with seed drills and fertilizer spreaders;
Variable width technology;
Modular harrow tooth system;
Material and manufacturing process improvement:
Application of high-strength and lightweight materials;
Wear-resistant harrow tooth coating technology;
Low vibration design;
IX. Conclusion
As a key equipment for fine land preparation in modern agriculture, the technological development of drive harrows directly affects the quality of soil cultivation and the growth environment of crops. With the popularization of precision agriculture and sustainable agriculture concepts, drive harrow technology will continue to innovate and provide more efficient and environmentally friendly soil treatment solutions for modern agriculture. The correct selection and use of drive harrows can significantly improve the quality of land preparation, create ideal conditions for subsequent seeding operations, and ultimately achieve the goal of increasing production and income.
