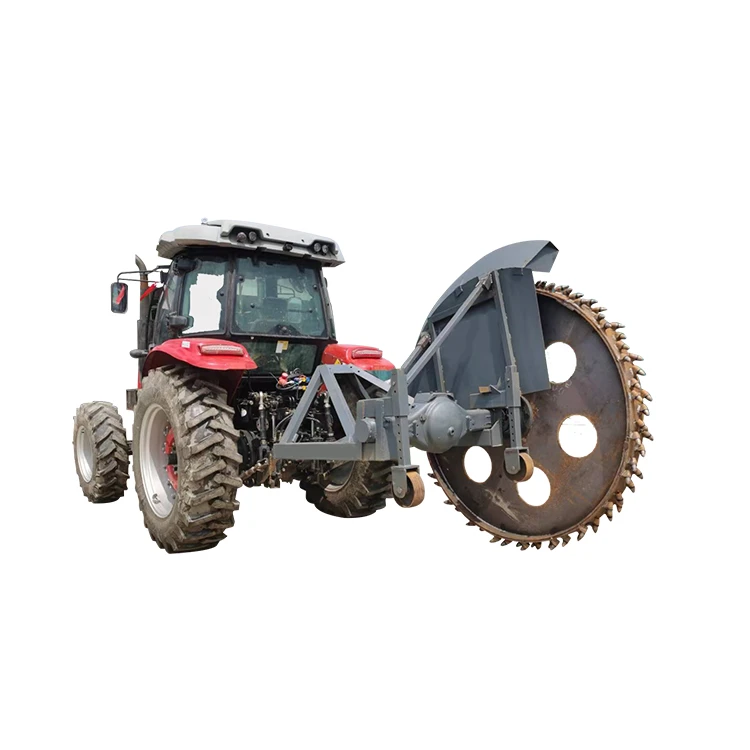

The Transmission Principle Of The Disc Trencher

The transmission principle of the tractor disc trencher mainly includes the following parts:

• ‌Transmission system‌: The power of the tractor is transmitted to the disc trencher through the transmission system. The transmission system usually adopts chain or belt transmission, and some adopt gear transmission. The transmission system needs to have a certain torque and speed output capacity to ensure the normal operation of the disc.
• ‌Power transmission‌: The engine of the tractor transmits power to the clutch through the belt, and then drives the travel gearbox, drive shaft, rear axle, etc., and finally realizes the forward or backward linear movement of the chain trencher.
• ‌Working principle of disc blade‌: When the disc trencher starts working, the disc starts to rotate. The blades on the disc will contact the ground and flatten the ground. As the disc rotates, the blades will gradually push the soil to both sides to form a groove. At the same time, the blades can also put seeds and fertilizers into the groove.
• ‌Movement principle‌: The disc trencher is usually moved by tractor traction. The tractor transmits power to the disc through the transmission system and supports the entire equipment through the bracket and wheels. During the movement, the rotation speed of the disc needs to match the forward speed of the tractor to ensure the quality of the work.
