I. Product Overview
The hand-held chain trencher is a small engineering machinery, mainly used for trenching operations in agricultural irrigation, cable laying, pipeline burial and other occasions. Compared with the traditional manual trenching method, this equipment has significant advantages such as high operating efficiency, low labor intensity and good trenching quality.
II. Main structural components
Power system
Adopts single-cylinder/double-cylinder air-cooled diesel engine or gasoline engine;
Power range 8-15 horsepower;
Equipped with centrifugal clutch to achieve smooth start;
Transmission system
Gear transmission realizes multi-speed shifting;
Chain transmission mechanism transmits power;
Some models use hydraulic transmission system;

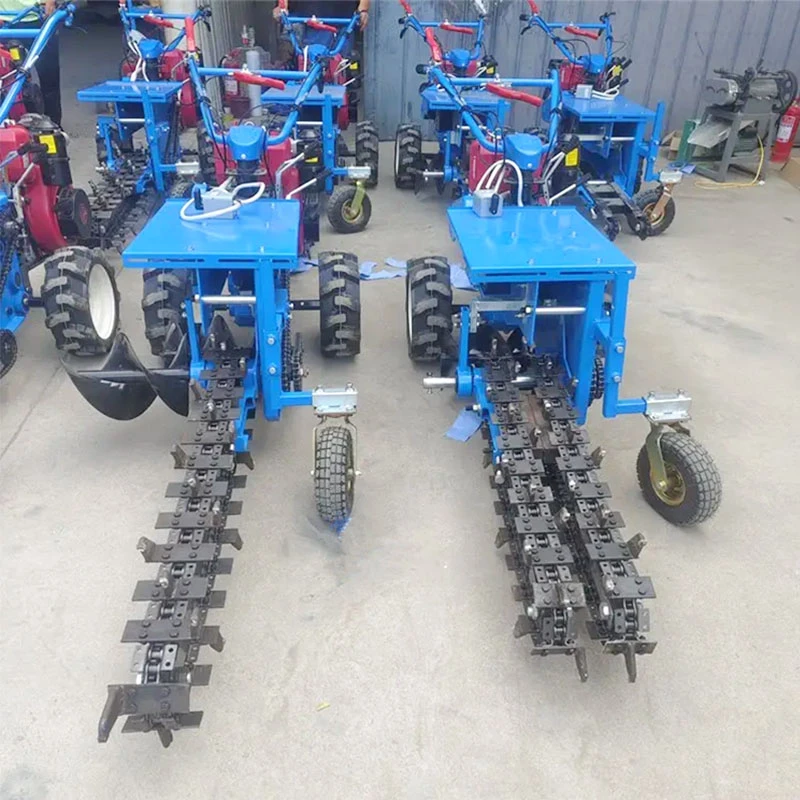

Trenching device
Manganese steel chain;
Replaceable alloy blade;
Depth adjustment mechanism (mechanical or hydraulic);
Travel system
Rubber track or steel wheel design;
Steering control handle;
Braking device;
III. Working principle

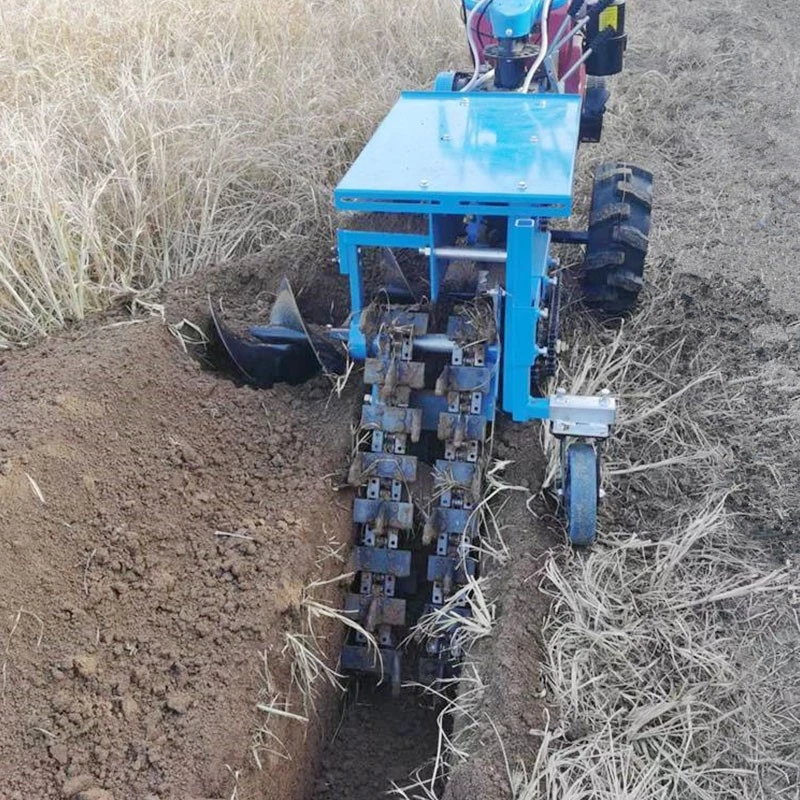

The engine power drives the trenching chain to rotate at high speed through the transmission system, and the blade on the chain cuts the soil to form a groove. The cut soil is discharged out of the ditch through the screw conveyor or the soil throwing device. The operator adjusts the ditching depth and walking direction through the control handle.
IV. Technical parameters
Dimensions: 1800×800×1100mm
Machine weight: 150-300kg
Ditching width: 100-300mm
Ditching depth: 300-1000mm
Operation speed: 5-15m/min
Fuel consumption: 1.5-3L/h
V. Performance characteristics
Efficient operation
The operation efficiency is 10-20 times that of manual labor;
Strong continuous operation capability;
Suitable for large-scale ditching operations;
Strong adaptability
Can cope with a variety of soils such as clay and sand;
Different blades are available to adapt to different working conditions;
Good passability, can be used in narrow places;
Easy to operate
One person can complete the operation;
Handle is centrally controlled;
Maintenance is simple;
VI. Application areas
Agricultural application
Excavation of farm irrigation canals;
Construction of drainage ditches in orchards;
Excavation of trenches for planting economic crops;
Engineering application
Laying of cables and optical cables;
Construction of water supply and drainage pipelines;
Landscaping projects;
Other applications
Construction of greenhouses;
Vineyard management;
Mountain terrace transformation;
VII. Precautions for use Items
Check the tightness of each component before operation;
Choose the appropriate blade according to soil conditions;
Regularly lubricate transmission parts such as chains;
Avoid working on hard rocky ground;
Pay attention to safety protection during operation;
VIII. Maintenance
Clean up dirt and debris on the machine after daily work;
Regularly check the tension of the chain;
Replace the engine oil every 50 hours;
Drain the fuel during long-term storage;
Replace the blade in time after wear;
IX. Purchase suggestions
Choose the appropriate power according to the operation requirements;
Prefer models with hydraulic depth adjustment;
Investigate the supply of vulnerable parts such as blades;
Choose a brand with perfect after-sales service; Consider multi-functional scalability;
X. Development trend
Develop in the direction of intelligence and increase automatic control systems;
Use more wear-resistant materials to extend service life;
Develop multi-functional models to achieve multi-purpose use of one machine;
Optimize ergonomics and improve operating comfort;
Develop electric models to meet environmental protection requirements;
As an important equipment for modern agriculture and engineering construction, the hand-held chain trencher has continuously expanded its technical level and application scope, and will play an important role in more fields in the future.
