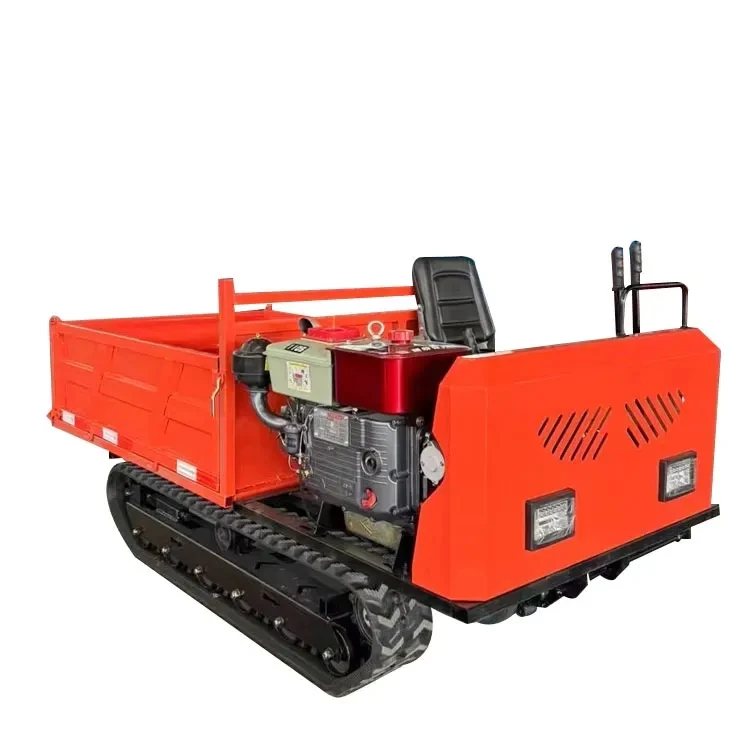

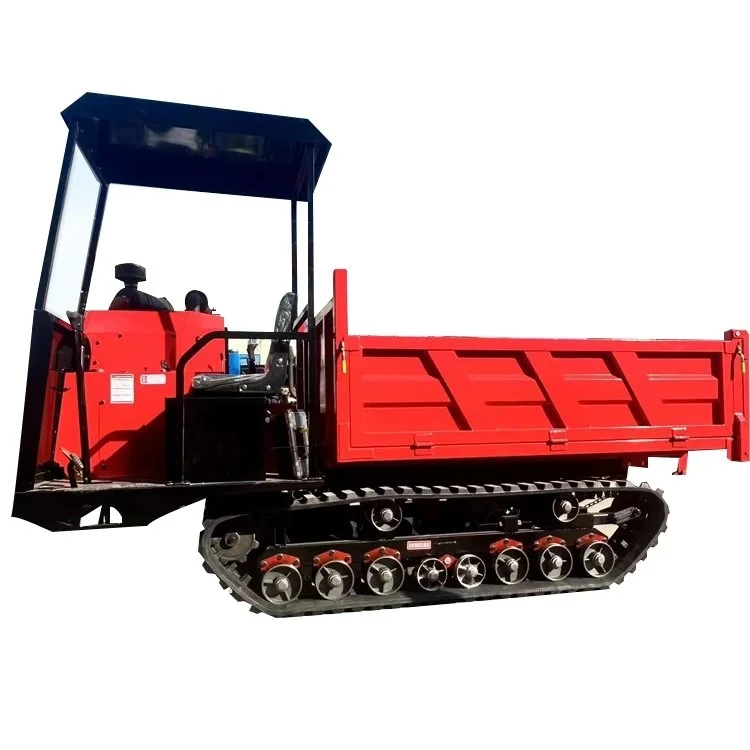

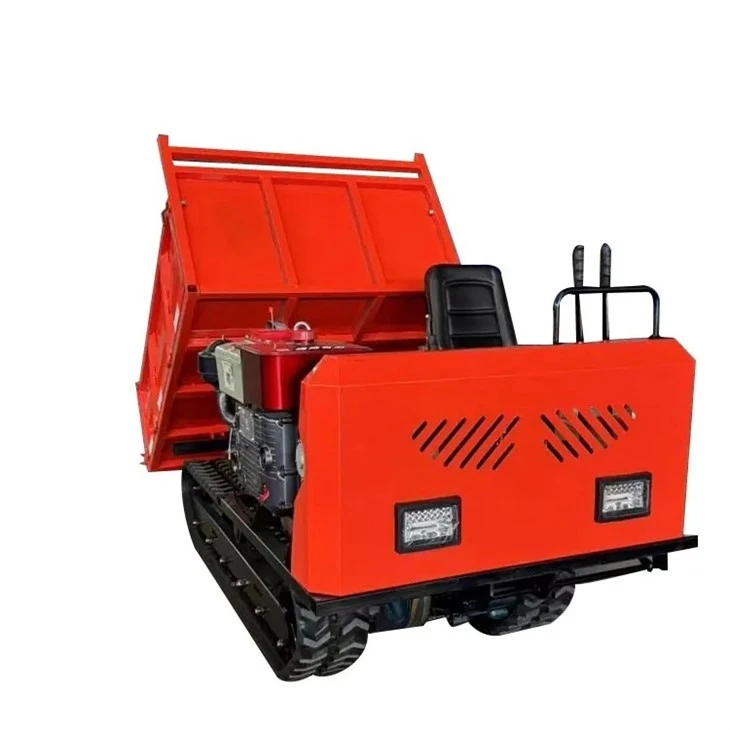

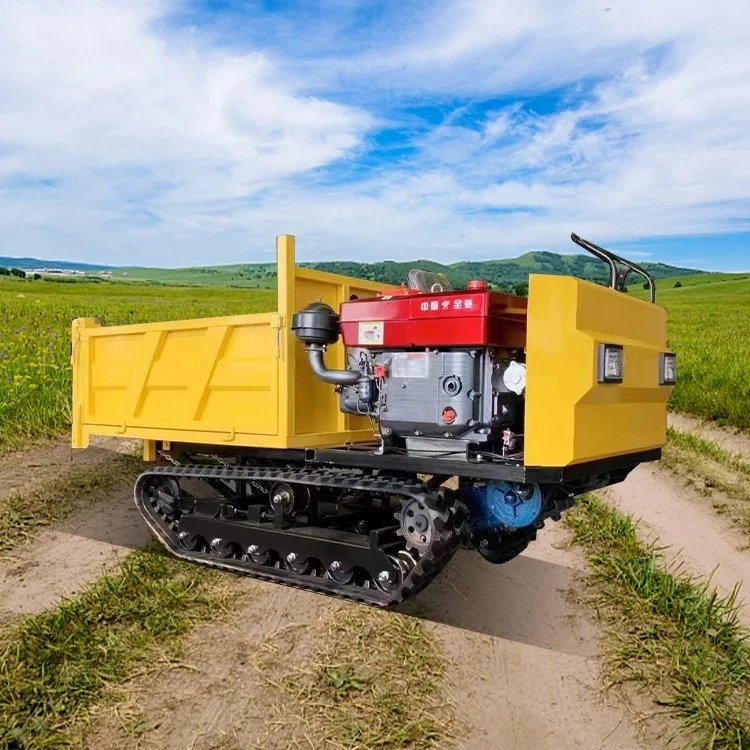

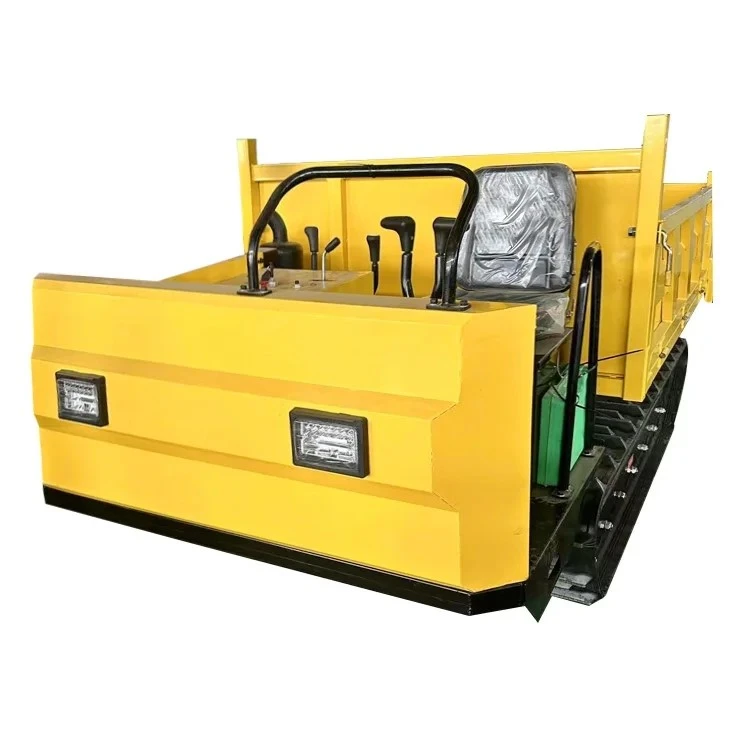

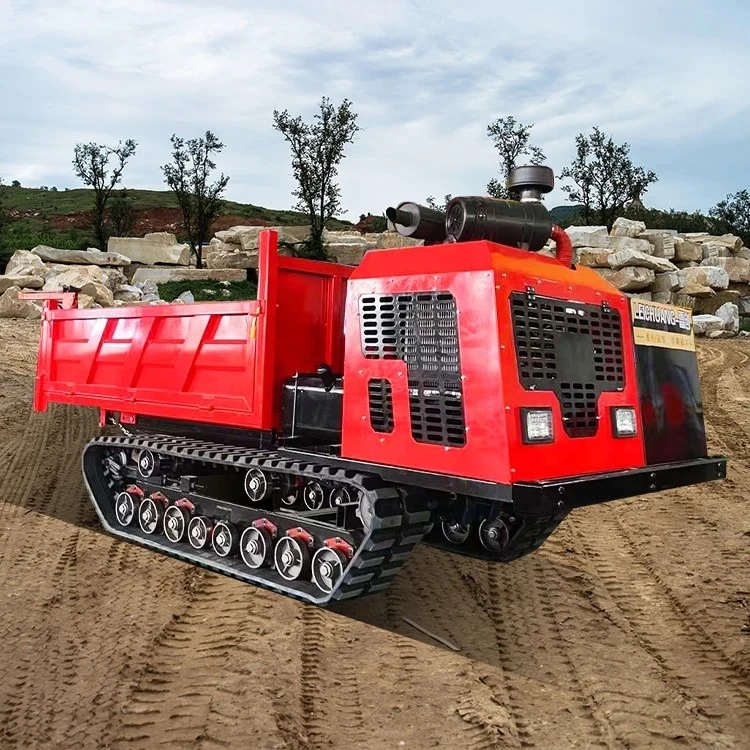

Agricultural crawler transporter

Agricultural crawler transport vehicles are flexible and rely on the supporting wheel system and crawler tracks to support the weight of the entire vehicle. The center of gravity is stable, the turning radius is small, and it is especially suitable for narrow places and complex terrains. It has large traction and good climbing and gripping performance. The whole machine has the functions of moving forward, backward, turning, and walking. It is flexible and can travel long distances. Agricultural small crawler transport vehicles have a wide range of applications and can adapt to complex and harsh road conditions such as rice fields, swamps, muddy field roads, rugged mountain roads, soft grasslands, mountains and deserts, slippery ice and snow. They are widely used in agricultural and forestry orchard transportation, cargo yard loading, water conservancy construction, infrastructure projects, and mining sites.

All-terrain crawler transport vehicles have similar uses to general transport vehicles, have certain substitution functions, and have similar working principles, but are used in different main areas. Transport vehicles in the usual sense are wheeled, and their main functions are transportation and loading. They are used in large-scale civil engineering, water conservancy, infrastructure projects, and mining fields. The crawler transporter uses crawlers instead of wheels to reduce damage to the ground. At the same time, the crawler travel device reduces the unit area pressure between the machine and the ground, and is suitable for work in mountains, fields, swamps, sand, grassland, snow, and soft soil or poor climatic conditions.

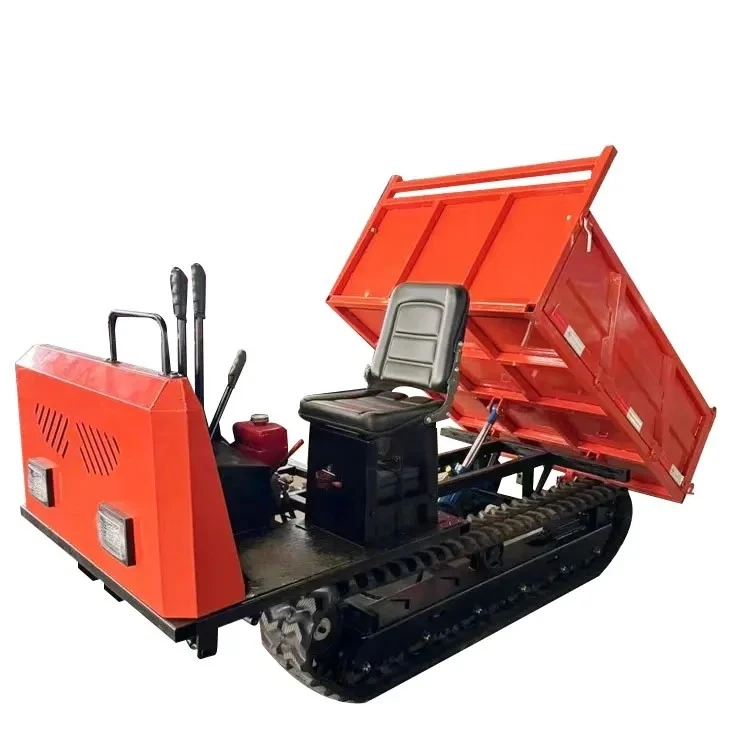

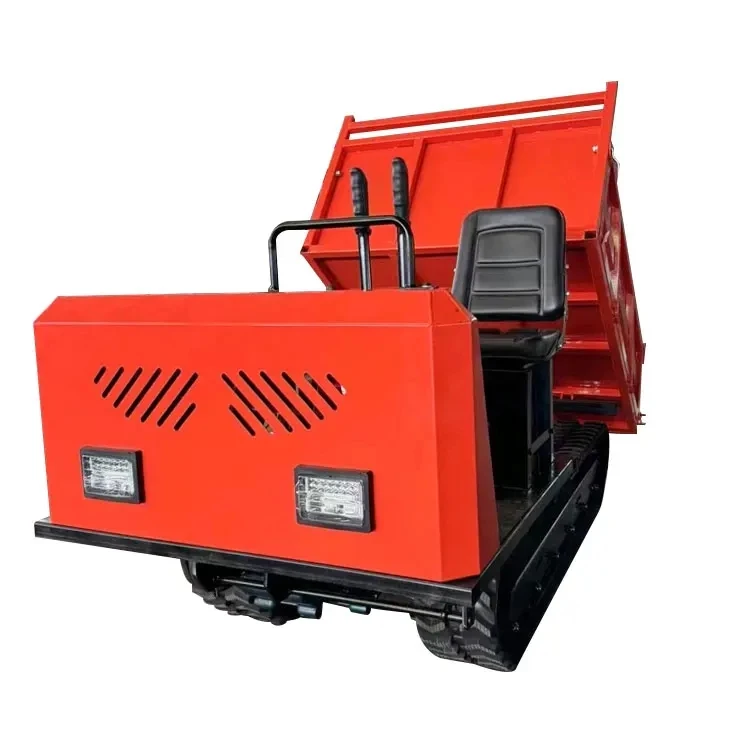

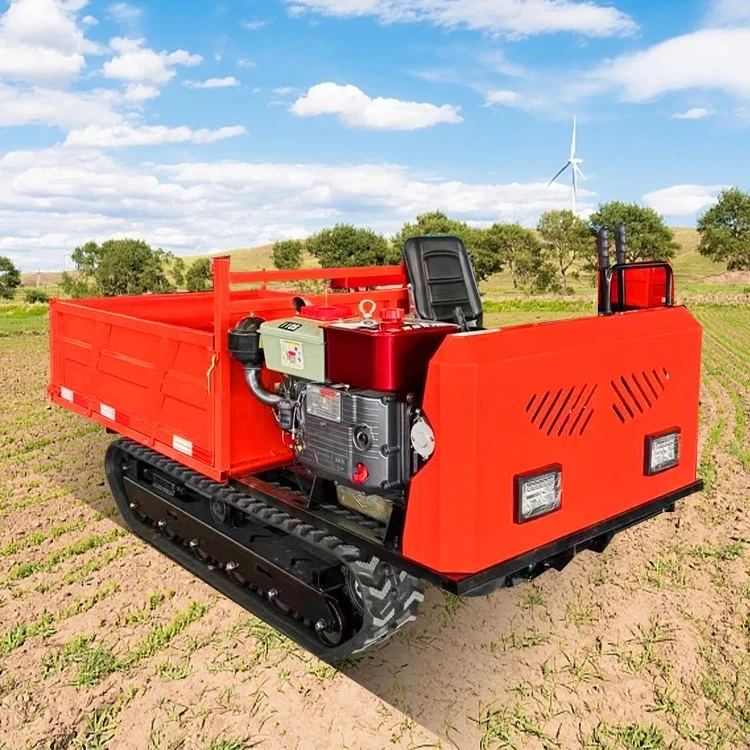

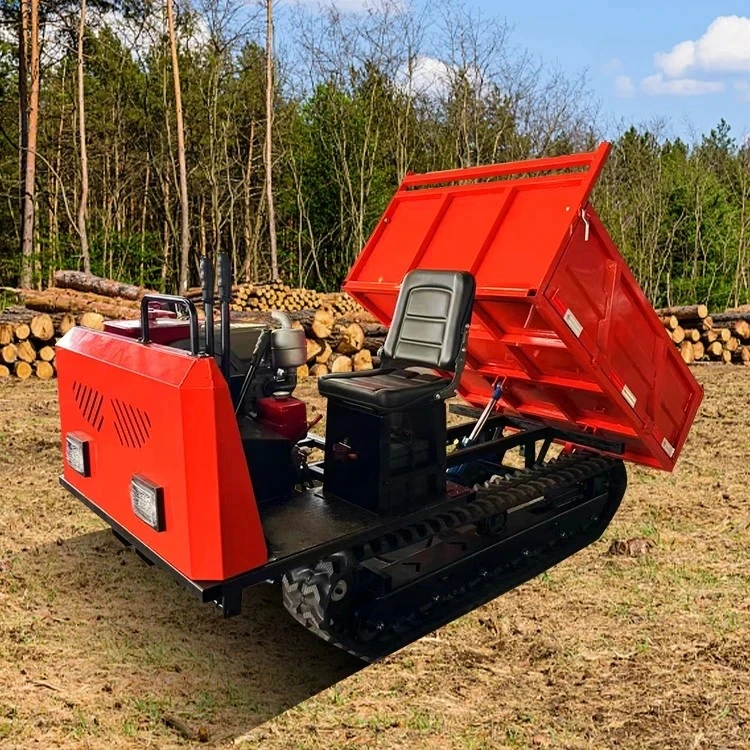

The crawler transporter is a dump truck made of rubber crawler chassis. It is a dump truck designed and manufactured for short-distance transportation in various complex terrains such as mountains, paddy fields, deserts, hills, etc. The machine has the characteristics of strong power, easy operation, stable travel, and strong climbing ability.

Safety operating procedures

Inspection before starting

1. Clean the dirt and debris on the equipment every shift; check whether the appearance of the equipment is intact, and whether there is abnormal damage such as deformation and cracks.

2. Check whether the walking mechanism is deformed or cracked; whether the connecting bolts are loose or lost; whether the drive gear block, supporting roller, guide wheel, and support roller are worn beyond the limit.

3. Check whether the lubrication of each part is good.

4. Check whether there is leakage in each part, whether the connecting bolts of each part are loose, broken, or lost; whether the accessories are complete.

5. Check the engine oil level, coolant level, battery electrolyte level, etc.

6. Check whether the instruments, indicators and indicator lights are complete and intact.

Startup

1. Before starting the engine, the inspection items for each shift must be completed.

2. After the engine is started, it should be idled for 3 to 5 minutes to check whether the engine has any abnormal noise, odor, abnormal vibration and leakage, and observe whether the color of the engine exhaust is normal.

3. Check the diesel and hydraulic oil volume and oil pressure.

4. After the engine is started, if the oil pressure is still abnormal after 6 seconds, it should be turned off immediately for inspection.

Operation

1. Do not drive or operate immediately after starting a cold vehicle, and do not operate at full load before the engine water temperature is below 60℃.

2. The engine idling time shall not exceed 15 minutes.

3. There must be a ground commander when the crawler transporter is operating, who is responsible for the safety of the crawler transporter operation.

4. Check whether there are people and obstacles in front, behind, left and right of the vehicle before starting, and sound the horn to indicate.

5. When driving, control the speed range according to the load conditions, and do not ride on stones and other materials that are higher than the chassis.

6. During driving, no one is allowed to get on or off the equipment, and no one is allowed to stand outside the cab for maintenance and other work. No other unrelated personnel are allowed to ride, and no one is allowed to ride anywhere outside the cab.

7. During operation, if the engine temperature is too high, the operation should be stopped, and the engine should not be turned off. Let the engine idle until the temperature drops to the normal range; if the temperature is high frequently, the engine fan belt and air filter should be checked, and the dust around the engine and the radiator should be cleaned. If the problem still cannot be solved, the maintenance personnel should be asked to check.

Features of agricultural crawler transporter

1. Wide range, simple structure, smooth transmission, labor-saving operation, easy to complete automatic control.
2. Suitable for complex road conditions such as swamps, river beaches, deserts, paddy fields, tropical rainforests, snow and ice.
3. Cylinder power system, low fuel consumption.
4. Large traction, good climbing and gripping function, strong transportation capacity.
5. Small turning radius, maneuverable and flexible, especially suitable for narrow places, reducing the cost of construction travel.
6. Electric start, centralized handle, easy operation.
7. Hydraulic lifting and unloading, reducing labor intensity and improving transportation power.

Agricultural crawler transporter, also known as transporter, unloader. Suitable for easily transporting large items, crops, sand, and other objects that are difficult to transport manually in narrow spaces. This machine is easy to operate and has precise control. The unique design makes the operation not only fast and cost-effective, but also has excellent climbing ability, especially for difficult operations. It is characterized by rubber tracks, which makes the operator effortless during transportation and minimizes damage to the ground. In certain restricted areas, such as unpaved areas, orchards, farmlands, vineyards, mountains, or narrow roads, mini transporters are often called "creepers" because of their compact structure and strong load-bearing capacity, and can play a satisfactory role.
