As an efficient and multifunctional soil operation equipment, disc ditching machine plays an important role in urban and rural infrastructure, farmland water conservancy, orchard management and other fields with its unique structural design and operating performance. This article will systematically analyze the core technical features of disc ditching machine from the aspects of technical principles, structural optimization, application scenarios and development trends.
1. Technical Principles and Core Structure

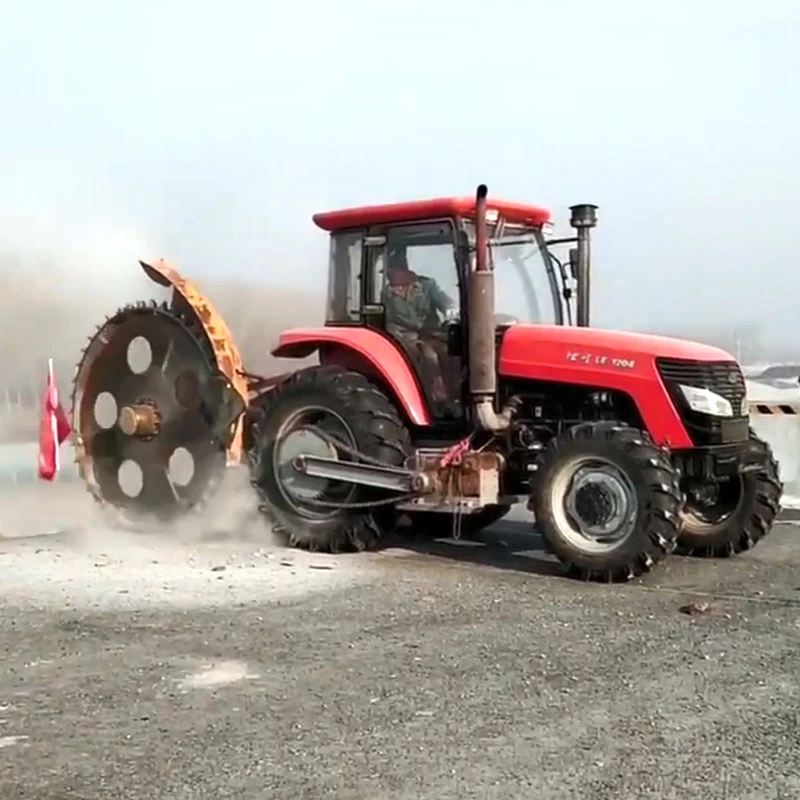

The core power of disc ditching machine comes from tractor or diesel engine, which drives the disc cutter to rotate at high speed through the transmission system to achieve soil cutting, crushing and throwing. Its key technologies include the following modules:
Power transmission system
The power is transmitted to the disc cutter through components such as pulleys, drive shafts, and speed change gearboxes. Some advanced models adopt a primary transmission design, which realizes power transmission only through a pair of involute bevel gears, significantly simplifying the structure and improving the transmission efficiency. For example, the optimized design (20°~30°) of the angle (α angle) between the axis of the active bevel gear in the gearbox and the horizontal plane can adapt to the power output height and operation scene requirements of different tractors.

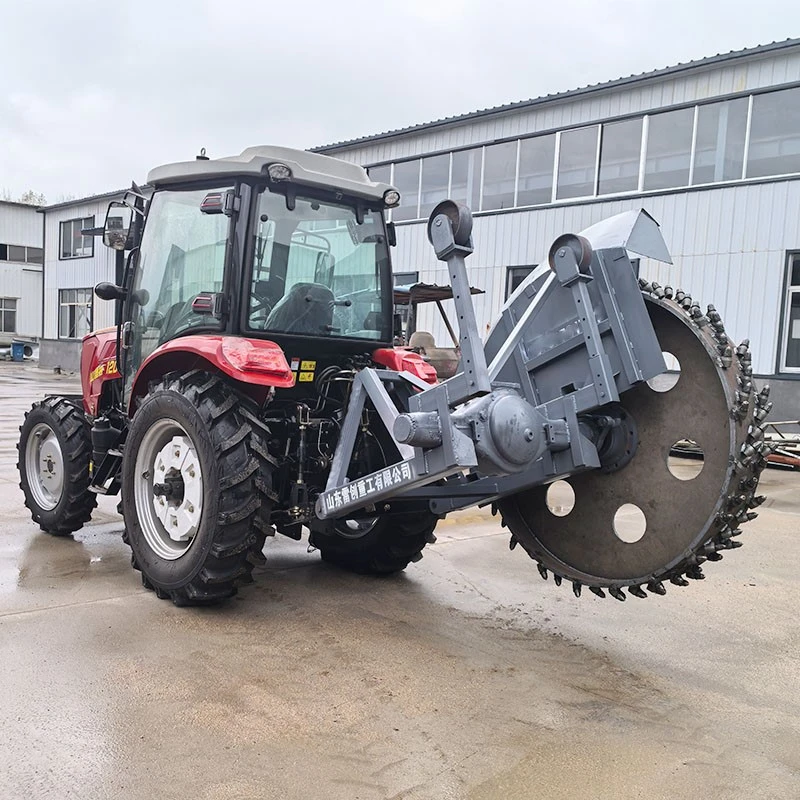

Disc cutter and milling and throwing device
The cutter usually uses high-strength alloy steel or carbide cutter head to meet the trenching needs of hard pavement (such as asphalt and concrete). The disc diameter is customized according to the project requirements. Large discs (such as 200 mm in diameter) can achieve narrow and deep trench excavation. The design of the milling and throwing disc optimizes the soil throwing trajectory by adjusting the inclination angle (θ=130°~90° continuous change) to evenly distribute the soil on both sides of the trench.
Depth and width adjustment system
The trenching depth (up to 1.5 meters deep) and width (13~55 cm) are controlled by hydraulic transmission shaft or mechanical adjustment device. For example, the hydraulic transmission shaft of the Steyr rear axle can accurately press down the frame to achieve adaptive adjustment under different soil conditions.
2. Technical advantages and performance breakthroughs
Compared with traditional excavators or chain trenchers, the advantages of disc trenchers are reflected in the following aspects:
High-efficiency operation capability
The trenching speed can reach 150~700 meters/hour, which is more than 10 times the efficiency of manual labor. For example, in a rural water supply project, the disc trencher completed the cutting, crushing and excavation of the road surface at one time, saving about 30% of the construction period.
Excellent molding quality
The trench wall is steep and the bottom is flat. The width and depth errors are controlled within ±5 cm, meeting the precision requirements of pipeline burial and cable laying. The earthwork is in powder form after crushing and can be directly used for backfilling, reducing the cost of transporting abandoned soil.
Multi-scenario adaptability
Urban and rural infrastructure: suitable for pipeline trench excavation in non-rock areas such as asphalt pavement and water-stabilizing layer (depth ≤1.5 meters).
Agricultural application: construction of orchard fertilizer trenches (depth 30~50 cm) and farmland drainage and irrigation canals, taking into account soil structure protection and operation efficiency.
Special project: supporting trenching device for rice direct seeding machine, realizing synchronous operation of sowing and soil treatment.
3. Technical Challenges and Optimization Directions
Although the disc trenching machine technology is mature, it still faces the following problems and room for improvement:
Adaptability to complex soils
For rock or high-hardness soil, it is necessary to optimize the tool material and transmission system. For example, a replaceable alloy cutter head is used, and the cutting intensity is adjusted by hydraulic motor gear grading (such as 1~4 gears).
Energy consumption and cost balance
Traditional disc trenching machines have high energy consumption per unit of earthwork (0.15~0.45 kW·h/m³). In the future, energy consumption can be reduced through lightweight design (such as aluminum alloy frame) and power matching algorithm.
Intelligent upgrade
Integrated sensors and automatic leveling system to monitor the groove size in real time and adjust the tool posture to reduce manual intervention. Some models have tested electric lifting devices to achieve precise control of trenching depth.
4. Development trends and innovative applications
Multifunctional integrated design
For example, the rice and wheat combined harvester trenching and grass burying machine can simultaneously complete crop harvesting, straw return to the field and sowing trenching, improving the comprehensive efficiency of farmland operations.
Modularization and customization
Quickly replace the tool or disc assembly according to the project requirements to adapt to different groove types (such as trapezoidal grooves, V-shaped grooves).
Green construction technology
By optimizing the soil throwing trajectory and soil backfilling process, the disturbance to the surrounding environment is reduced to meet the "minimally invasive" construction requirements.
Conclusion
The disc trencher has become an important equipment for modern engineering and agricultural mechanization due to its high efficiency, precision and low disturbance technical characteristics. With the integration of materials science, intelligent control and other technologies, its application scenarios will be further expanded in the future, providing more efficient solutions for urban and rural infrastructure and agricultural production.
