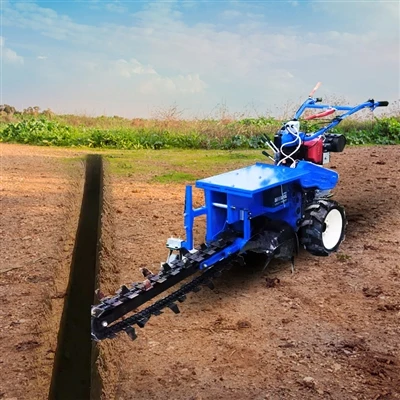

It is mainly composed of a drive pulley, a drive shaft, a speed change gearbox, a cutter shaft and a frame. It also includes a power system, a reduction system, a chain drive system and a soil separation system.
The machine transmits the rotation of the diesel engine in the power system to the reduction box in the reduction system through a quadruple belt, drives the main sprocket installed on it, and the main sprocket drives the chain meshing with it to rotate.
The cutter is installed on the chain. Under the drive of the power system, the chain drives the cutter to rotate and translate, thereby realizing trenching.
